Product Description
Technical Specifications

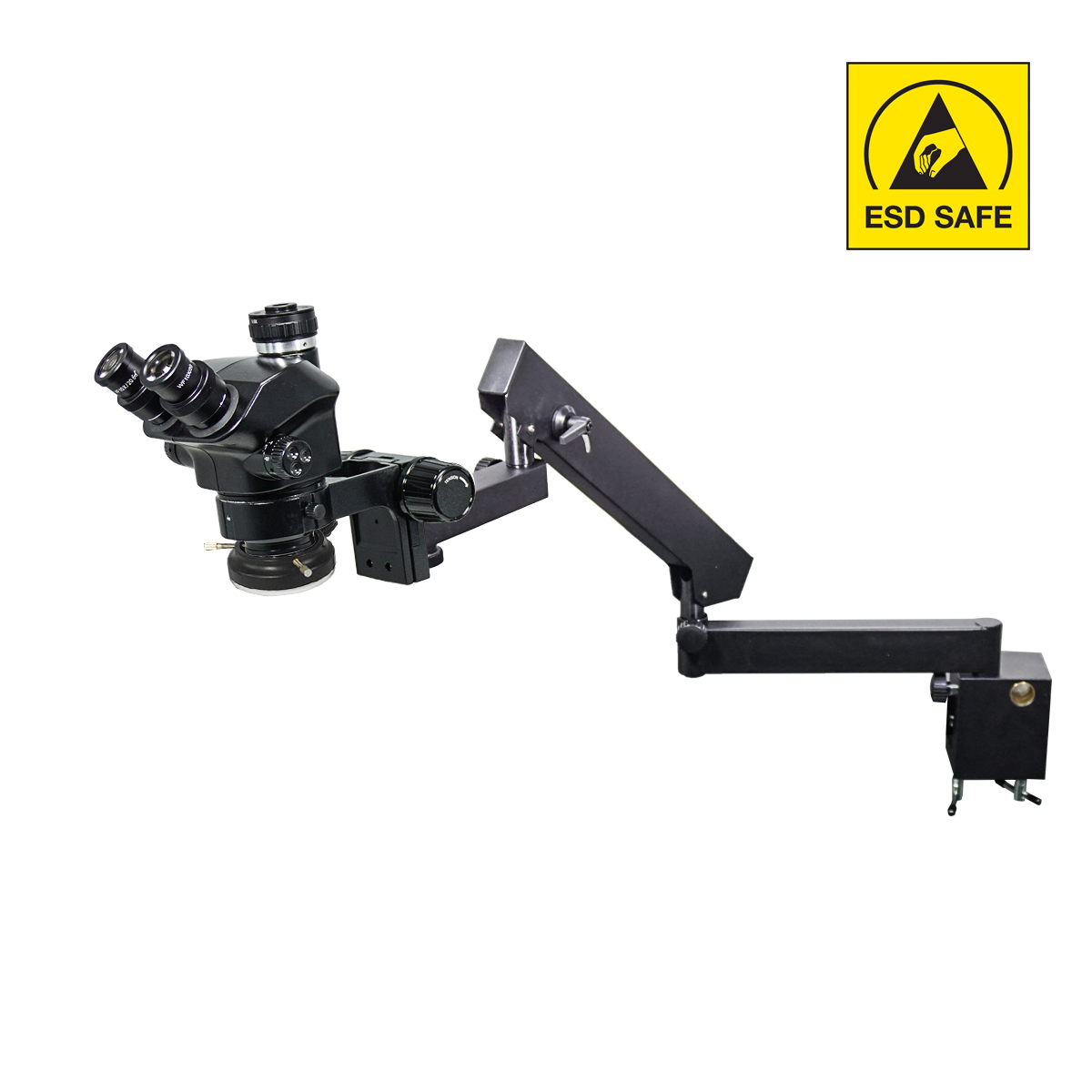

SZ02090654 ESD Trinocular Zoom Stereo Microscope
Optical System Specifications
Optical SystemFinite
System Optical Magnification7-50X
Trinocular Optical Magnification0.35-2.5X
Total Magnification7-50X
Standard Eyepiece10X High Eyepoint Eyepiece
Standard Objective1X Built-in Objective
Standard Coupler0.5X
System Field of View Dia. 4-28.57mm
System Working Distance103mm
ESD Trinocular Zoom Body
Body Optical SystemFinite
Body Magnification7-50X
Zoom Range0.7-5X
Zoom Ratio1:7.1
Zoom Operating ModeWith Two Horizontal Knobs
Observation MethodTrinocular
Body Mounting Size for Stand Dia. 76mm
Body Mount Type for CouplerThread Screw
Body Mount Size for Coupler Dia. 28mm
Nosepiece Adapter Size for Ring Light Dia. 54mm
Eye Tube Adjustment ModeSiedentopf
Eye Tube Angle45°
Erect/Inverted ImageErect image
Eye Tube Rotatable360° Degree Rotatable
Interpupillary Adjustment45-65mm
Eye Tube Inner Diameter Dia. 30mm
Eye Tube Diopter Adjustable±5°
Eyepiece TypeStandard Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 30mm
Eyepiece Field of View Dia. 20mm
Eyepoint TypeHigh Eyepoint Eyepiece
Eyepiece Size for Reticle Dia. 24mm
Eye Guard InstallationIndependent Eye Guard
Eye Guard Mount Size Dia. 36mm
Built-in Objective Magnification1X
Objective Working Distance103mm
Objective Screw ThreadM48x0.75mm
Surface TreatmentSpray Paint
ESD SafeESD Safe
MaterialMetal
ColorBlack
Net Weight1.27kg (2.80lbs)
Ring Adapter Outer Diameter Dia. 49.5mm
Ring Adapter Screw ThreadM48x0.75mm
Ring Adapter SlotTwo cut slots
Surface Treatment Polished Aluminum
MaterialAluminum
ColorWhite
Net Weight0.02kg (0.04lbs)
Applied FieldFor FS0801, SZ0801, SZ0802, SZ0501, SZ0502, SZ0503, SZ0702, SZ1901, FS0503 Series Microscope
ESD Flexible Arm, Clamp Stand
Stand TypeFlexible Arm
Total Arm Length800mm
Mounting Hole on the Top of Horizontal Arm5/8 in. End Adapter
Horizontal Rotation Angle360° Degree Rotatable
Horizontal Arm Maximum Load9.50kg (20.94lbs)
Horizontal Arm Travel Mode on Horizontal DirectionManual
Horizontal Arm Travel Mode on Z DirectionManual
Base TypeClamp
Base ShapeRectangle
Base Mounting Size Dia. 22mm
Base Dimensions115x96x80mm
Clamp Opening Size0-62mm
Surface TreatmentSpray Paint
ESD SafeESD Safe
MaterialMetal
ColorBlack
Net Weight6.05kg (13.34lbs)
Dimensions800x280x140mm (31.496x11.024x5.512 in. )
76mm ESD E-Arm
Holder Adapter Type Dia. 76mm Scope Holder
Focus Distance50mm
Coarse Focus Distance per Rotation20mm
E-Arm Rotation Range on Horizontal Direction360°
E-Arm Rotation Range on Z Direction180°
E-Arm Mounting Adapter5/8 in. End Adapter
Center Distance from E-Arm Adapter to Scope Holder130mm
E-Arm Horizontal Adjustment ScrewHorizontal Adjustable
Safety Protection Against Falling ScrewWith Safety protection against falling Screw
Surface TreatmentPlastic Spray Coating
ESD SafeESD Safe
MaterialMetal
ColorBlack
Net Weight0.84kg (1.85lbs)
LED Ring Light (6W ID61mm 64Bulbs)
Light Source TypeLED Light
Ring I.D. Size Dia. 61mm
LED Quantity64
Power Supply AdjustableLight Adjustable
Light Source Illuminance80000Lux
Power Box Panel Meter DisplayPointer Panel Meter/Scale
Power Box Cooling SystemHeat Sink
Power Box Dimensions122x96x43mm
Bulb Color Temperature6500K
Output Power6W
Input VoltageAC 90-265V 50/60Hz
Output VoltageDC 24V
Power Cord Connector TypeUSA 2 Pins
Power Cable Length1.3m
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.42kg (0.93lbs)
Screw ModelM4x24mm
0.5X Coupler
Coupler Mount Type for TrinocularFastening Screw
Coupler Mount Size for Trinocular Dia. 38mm
Adjustable CouplerAdjustable
Coupler for Microscope TypeStereo Compatible
Coupler Magnification0.5X
C/CS-Mount CouplerC-Mount
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.10kg (0.22lbs)
Applied FieldFor SZ0502, SZ0503 Series Trinocular Zoom Body
Other Parameters
Surface TreatmentSpray Paint
ESD SafeESD Safe
MaterialMetal
ColorBlack
Net Weight8.70kg (19.18lbs)
Dimensions800x280x140mm (31.496x11.024x5.512 in. )
Series
SZ1904SZ02090654
Contains
Parts Including
PictureP/NProduct Name
ML02241521LED Ring Light (6W ID61mm 64Bulbs)
SZ19041153ESD Trinocular Zoom Body
SA1902112276mm ESD E-Arm
SZ05014911Ring Adapter
SZ050361330.5X Coupler
ST19071121ESD Flexible Arm, Clamp Stand
Product Instructions/Operation Manual1pc
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)39x24x36cm (15.354x9.449x14.173″)
Packaging Dimensions(2)51x40x19cm (20.079x15.748x7.48″)
Packaging Dimensions(3)29x16x18cm (11.417x6.299x7.087″)
Packaging Dimensions(4)25x21x6cm (9.843x8.268x2.362″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight10.64kg (23.50lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)39x24x36cm (15.354x9.449x14.173″)
Transportation Carton Dimensions(2)51x40x19cm (20.079x15.748x7.48″)
Transportation Carton Dimensions(3)29x16x18cm (11.417x6.299x7.087″)
Transportation Carton Dimensions(4)25x21x6cm (9.843x8.268x2.362″)
Total Gross Weight of Transportation(kilogram)10.64
Total Gross Weight of Transportation(pound)23.50
Quantity of One Transportation Carton4pc
Microscope Optical Data Sheet
P/N Objective Objective Working Distance Eyepiece
SZ05033211   (10X  Dia. 20mm) SZ19013211   (10X  Dia. 20mm) SZ19041153   (10X  Dia. 20mm)
Magnification Field of View(mm) Magnification Field of View(mm) Magnification Field of View(mm)
SZ19044211 0.5X 165mm 3.5-25X 8-57.14mm 3.5-25X 8-57.14mm 3.5-25X 8-57.14mm
SZ19044311 0.75X 117mm 5.25-37.5X 5.33-38.1mm 5.25-37.5X 5.33-38.1mm 5.25-37.5X 5.33-38.1mm
SZ19041153 1X 103mm 7-50X 4-28.57mm 7-50X 4-28.57mm 7-50X 4-28.57mm
SZ19044611 2X 30mm 14-100X 2-14.29mm 14-100X 2-14.29mm 14-100X 2-14.29mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /(Objective Optical Magnification*Body Magnification)
3. The Darker background items are Standard items, the white background items are optional items.
Video Microscope Optical Data Sheet
P/N Objective Coupler
SZ05036133  (0.5X) SZ19046131  (1X)
Magnification Magnification
SZ19044211 0.5X 0.18-1.25X 0.35-2.5X
SZ19044311 0.75X 0.26-1.88X 0.52-3.75X
SZ19041153 1X 0.35-2.5X 0.7-5X
SZ19044611 2X 0.7-5X 1.4-10X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification
Camera Image Sensor Specifications
No. Camera Image Sensor Size Camera image Sensor Diagonal
(mm) (inch)
1 1/4 in. 4mm 0.157"
2 1/3 in. 6mm 0.236"
3 1/2.8 in. 6.592mm 0.260"
4 1/2.86 in. 6.592mm 0.260"
5 1/2.7 in. 6.718mm 0.264"
6 1/2.5 in. 7.182mm 0.283"
7 1/2.3 in. 7.7mm 0.303"
8 1/2.33 in. 7.7mm 0.303"
9 1/2 in. 8mm 0.315"
10 1/1.9 in. 8.933mm 0.352"
11 1/1.8 in. 8.933mm 0.352"
12 1/1.7 in. 9.5mm 0.374"
13 2/3 in. 11mm 0.433"
14 1/1.2 in. 12.778mm 0.503"
15 1 in. 16mm 0.629"
16 1/1.1 in. 17.475mm 0.688"
Digital Magnification Data Sheet
Image Sensor Size Image Sensor Diagonal size Monitor
Screen Size (24in)
Digital Zoom Function
1/3 in. 6mm 101.6
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
Microscope Optical and Digital Magnifications Data Sheet
Objective Coupler Camera Monitor Video Microscope Optical Magnifications Digital Zoom Function Total Magnification Field of View (mm)
PN Magnification PN Magnification Image Sensor Size Image Sensor Diagonal size Screen Size
SZ19044211 0.5X SZ05036133 0.5X 1/3 in. 6mm 24in 0.18-1.25X 101.6 18.29-127X 4.8-33.33mm
SZ19044211 0.5X SZ19046131 1X 1/3 in. 6mm 24in 0.35-2.5X 101.6 35.56-254X 2.4-17.14mm
SZ19044311 0.75X SZ05036133 0.5X 1/3 in. 6mm 24in 0.26-1.88X 101.6 26.42-191.01X 3.19-23.08mm
SZ19044311 0.75X SZ19046131 1X 1/3 in. 6mm 24in 0.52-3.75X 101.6 52.83-381X 1.6-11.54mm
SZ19041153 1X SZ05036133 0.5X 1/3 in. 6mm 24in 0.35-2.5X 101.6 35.56-254X 2.4-17.14mm
SZ19041153 1X SZ19046131 1X 1/3 in. 6mm 24in 0.7-5X 101.6 71.12-508X 1.2-8.57mm
SZ19044611 2X SZ05036133 0.5X 1/3 in. 6mm 24in 0.7-5X 101.6 71.12-508X 1.2-8.57mm
SZ19044611 2X SZ19046131 1X 1/3 in. 6mm 24in 1.4-10X 101.6 142.24-1016X 0.6-4.29mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

Recently viewed products
