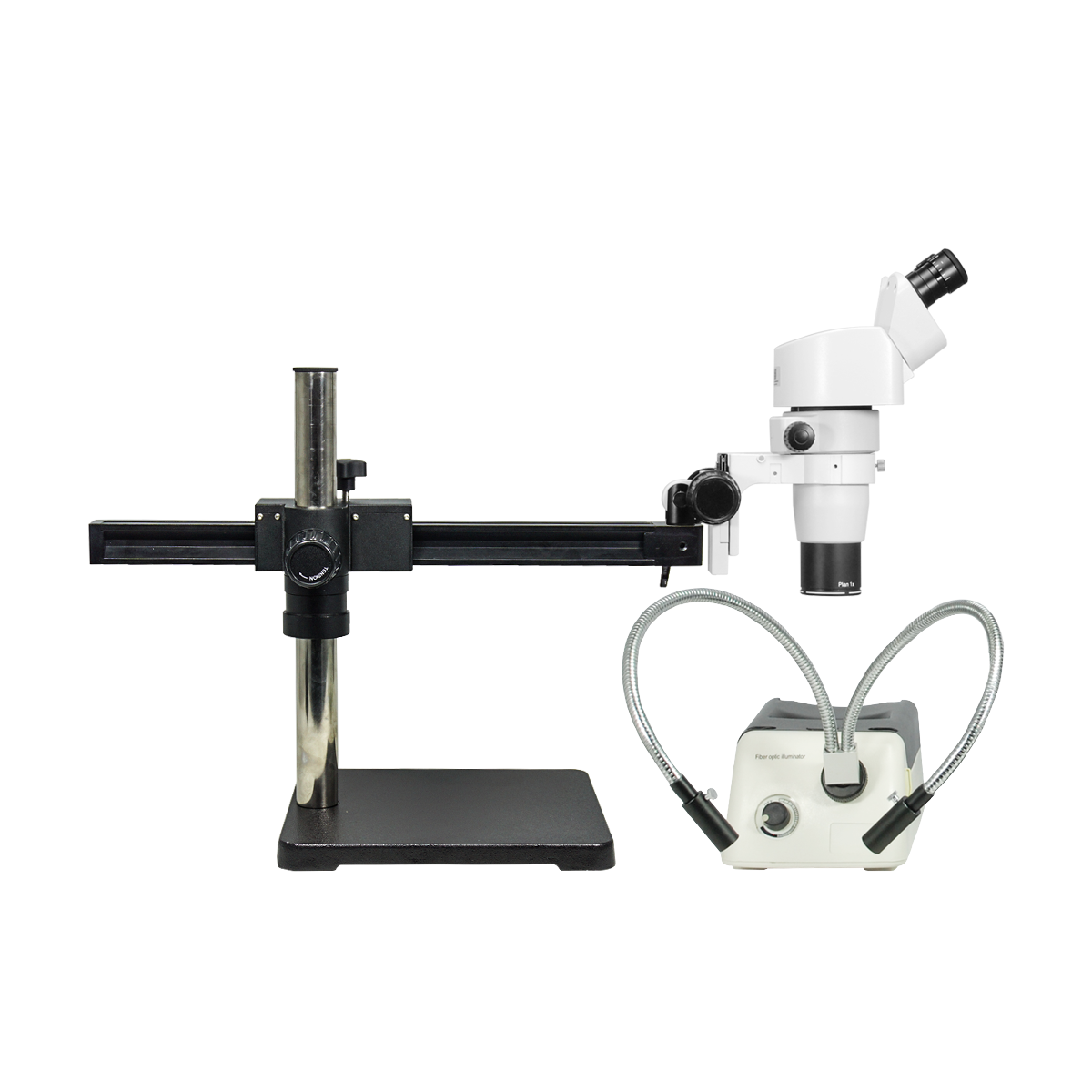

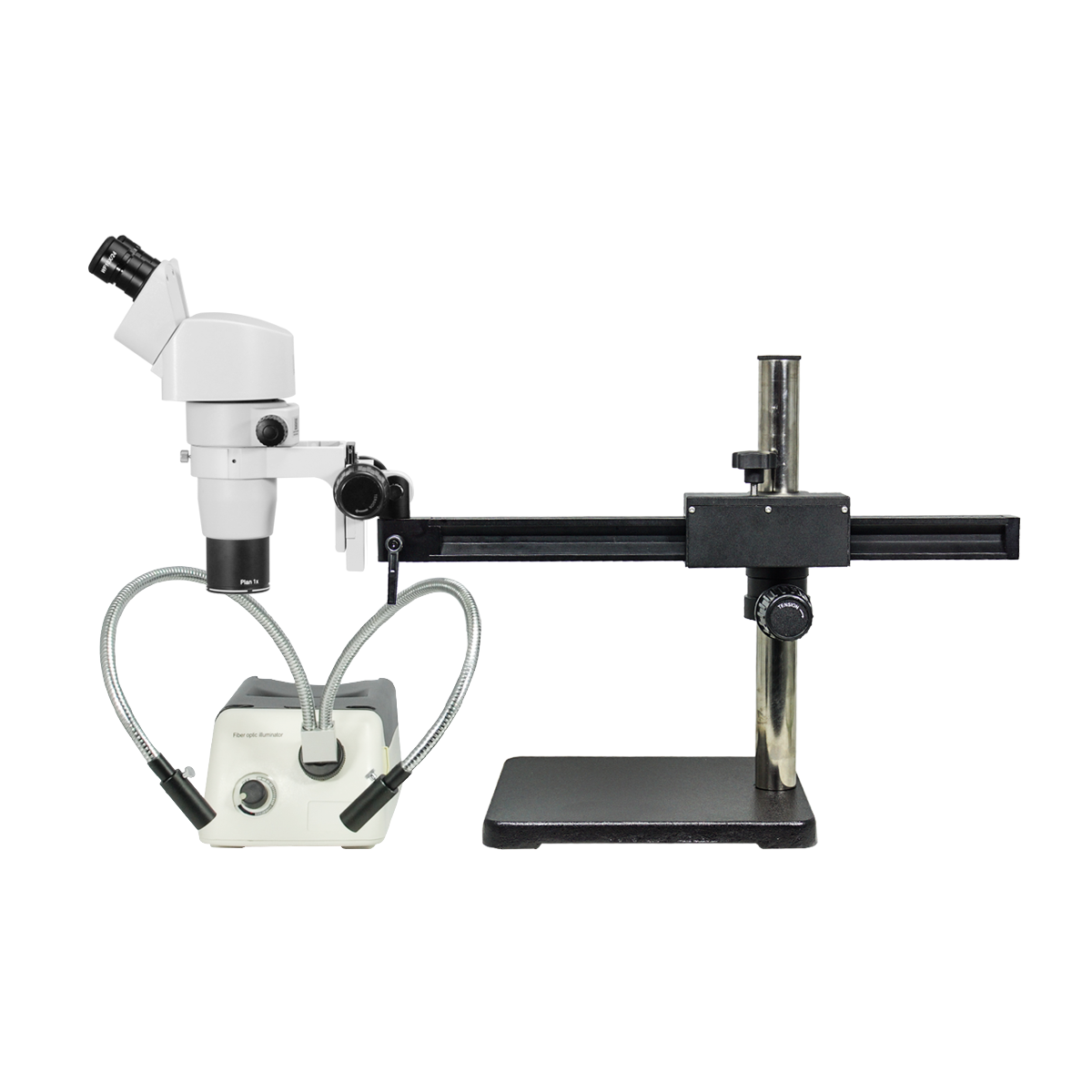

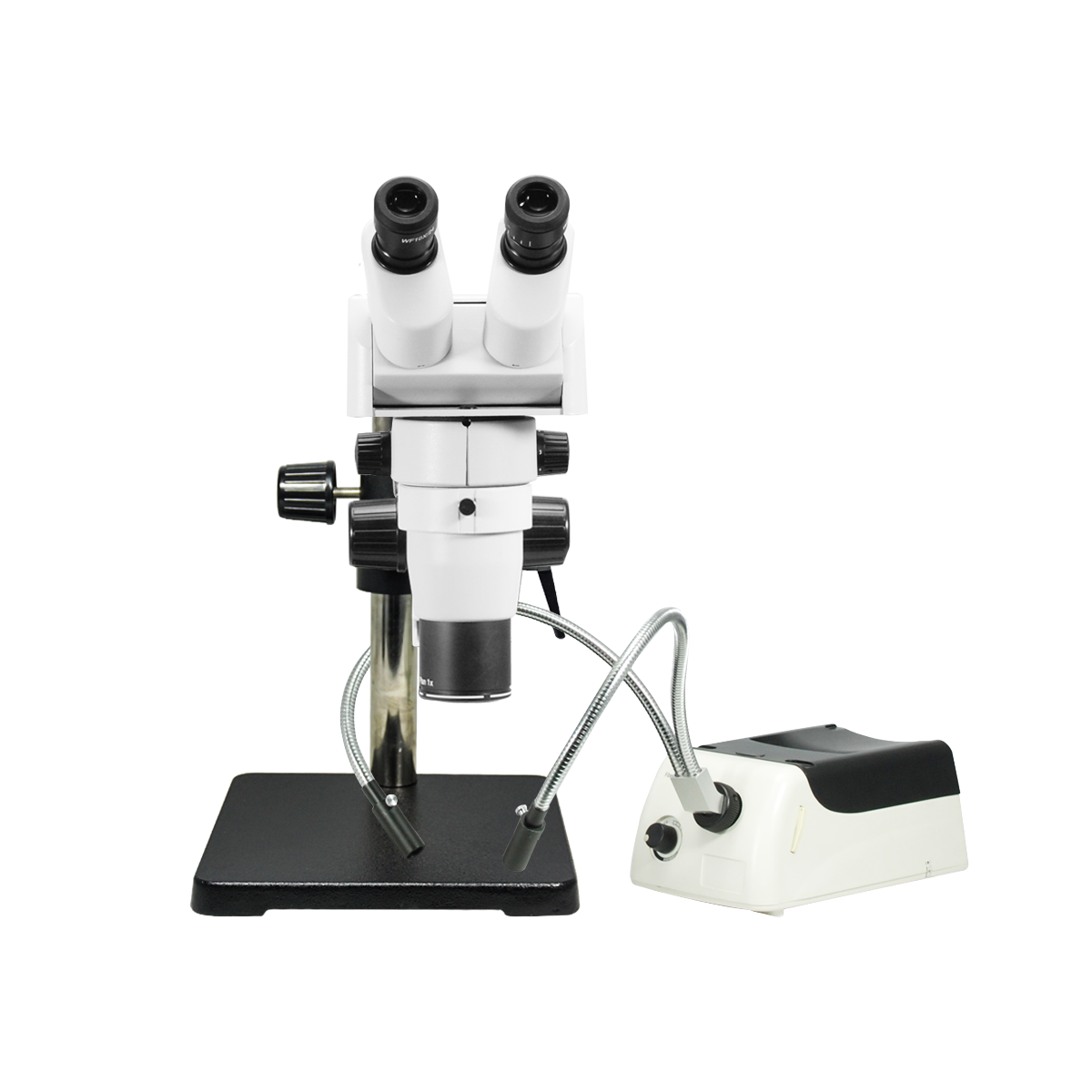

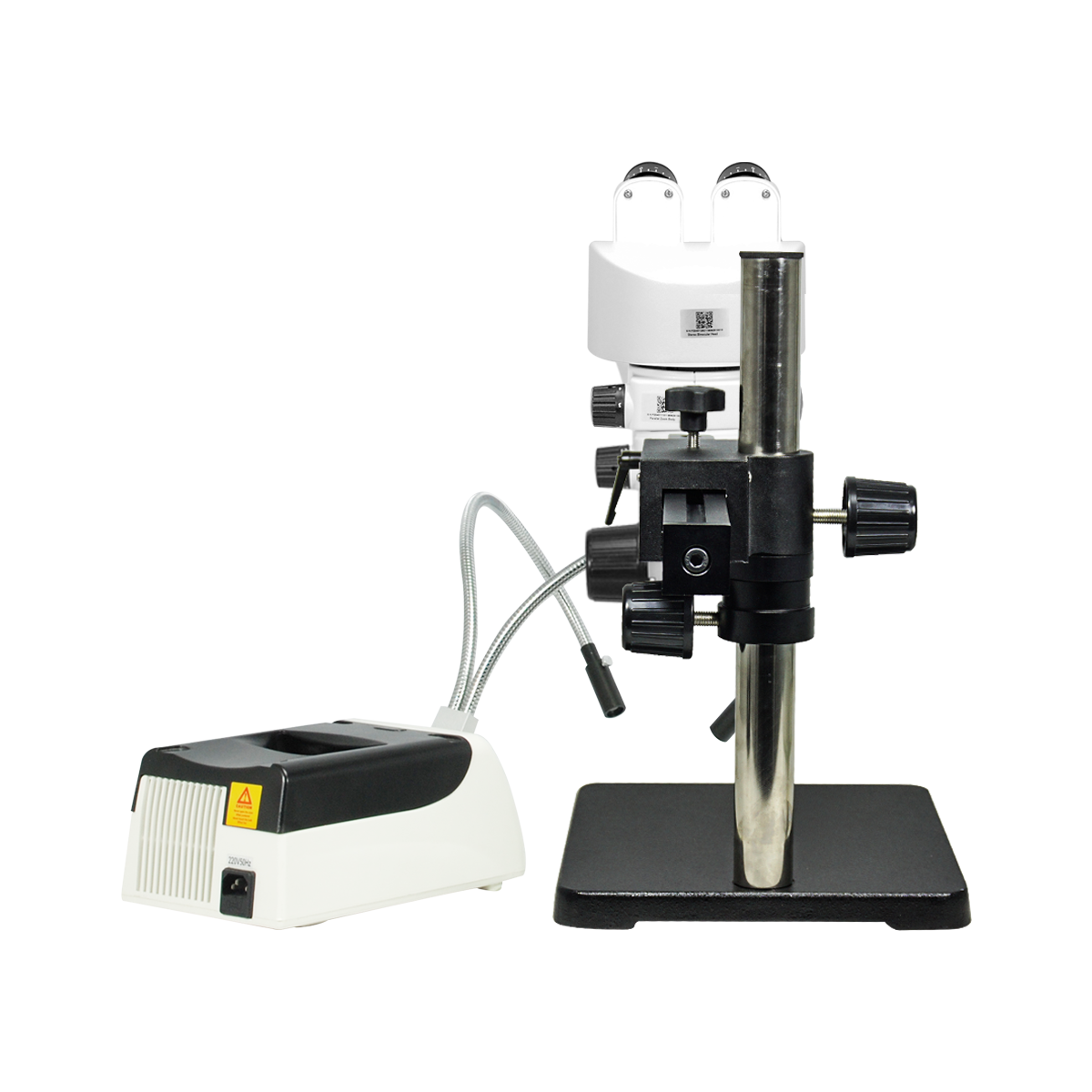

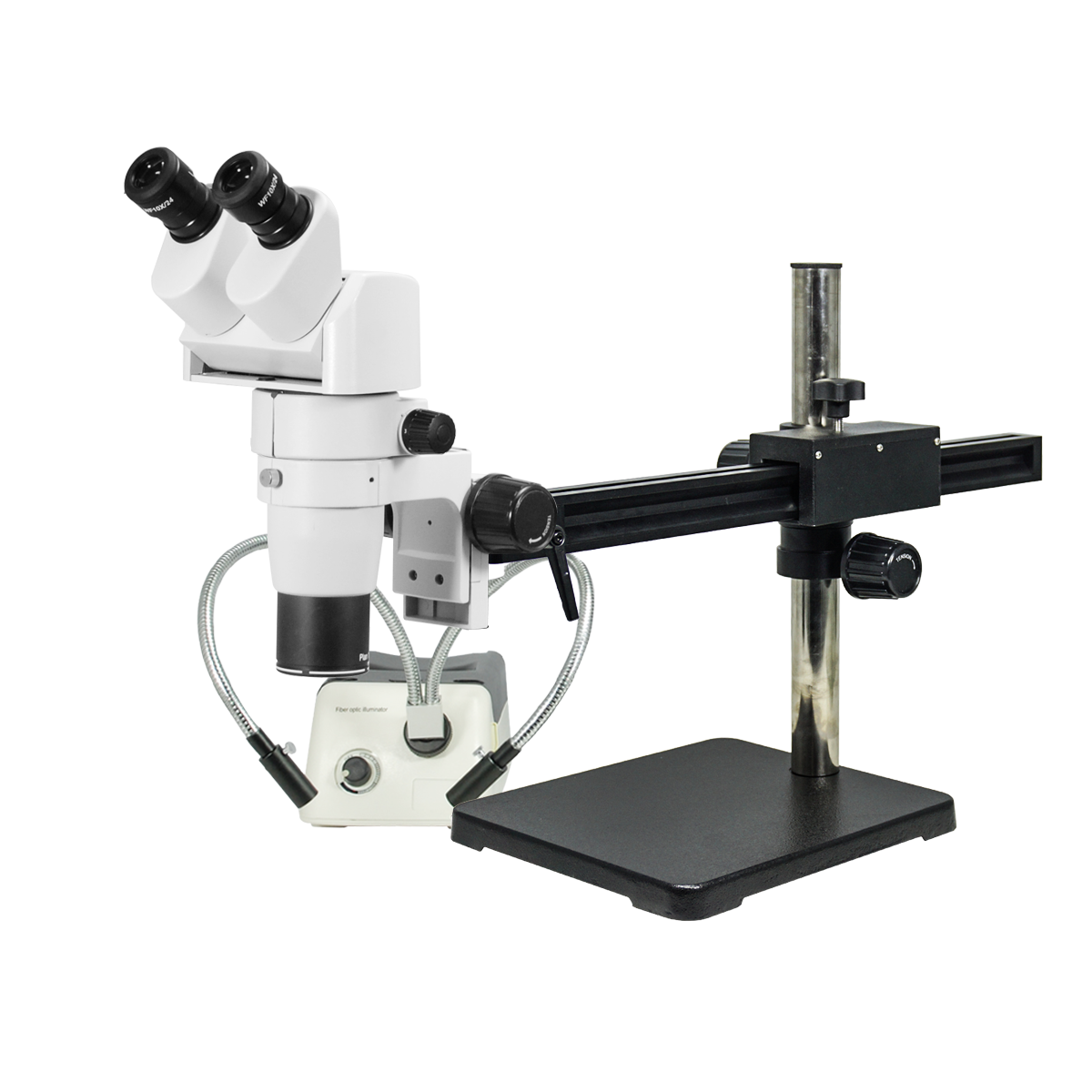

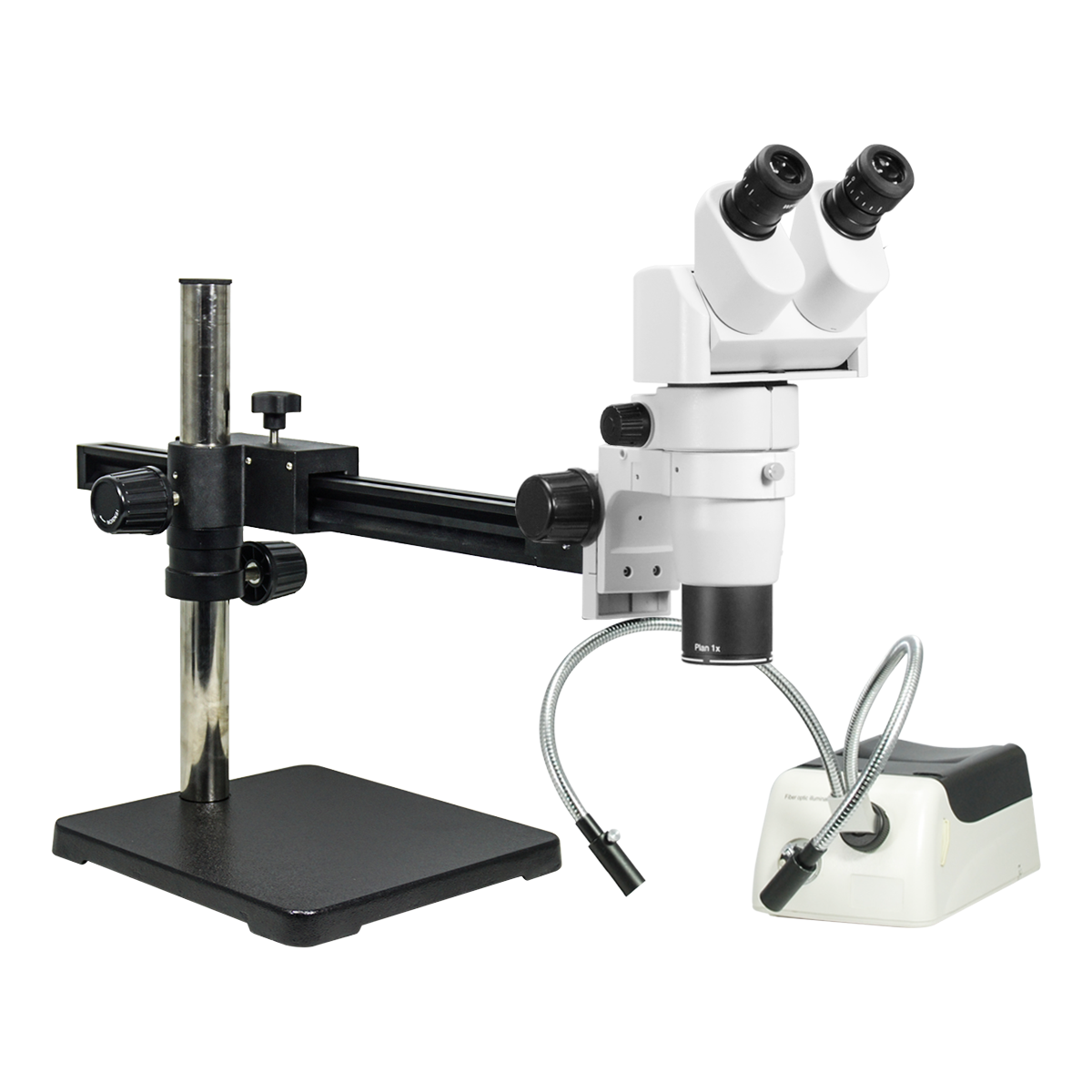

8-80X Ball Bearing Boom Stand Halogen Light Binocular Parallel Zoom Stereo Microscope PZ02080266
8-80X Ball Bearing Boom Stand Halogen Light Binocular Parallel Zoom Stereo Microscope PZ02080266
Infinite. Total Magnification: 8-80X. 10X Adjustable Eyepiece. 1X Infinity Plan Achromatic Objective. Zoom Ratio: 1:10. Body Mounting Size for Stand: Dia. 76mm. Eye Tube Angle: 0-35°. Eyepiece Field of View: Dia. 24mm. Ball Bearing Boom Stand. Halogen Light. Light Adjustable. Gooseneck Dual Pipe Light . Input Voltage: AC 90-240V 50/60Hz.
We Offer World Wide Shipping (We are Based in California, USA)
Free Shipping within the Contiguous U.S.
We offer Free Economy Ground Shipping on all orders to U.S. contiguous locations placed on our website. When you select Free Shipping at checkout, we’ll ship your order with the most cost-effective shipping method. If you prefer a specific carrier, please select a paid shipping option instead of Free Shipping.
Note on Purchase Orders: Free shipping is only offered for orders placed online, and paid by Credit Card/Debit Card, or PayPal on our website. You may place your Purchase Order online, and enter your PO # in the Order Comments, and this PO# will show on your Packing Slip. Free shipping does not apply to Purchase Orders sent by email. If you are a company or university and emailing us a Purchase Order, the shipping fee will be added onto your invoice. Alternatively, you may provide a shipping account for us to ship the order under.
Free shipping does not apply to orders of any international and non-contiguous U.S. locations, such as Alaska, Hawaii, all off-shore U.S. territories and possessions, American Samoa, Guam, Northern Mariana Islands, Puerto Rico, and the U.S. Virgin Islands.
Expedited Shipping
We offer expedited shipping via FedEx and UPS.
For all expedited shipping services, such as Overnight, Next Day, etc - While we will do our part to ensure the packages are received by the shipping carriers to meet the shipping cut off times, please note that once the package leaves our warehouse, we are no longer responsible for the delivery of the package. The shipping carrier is responsible for delivering your package.
Shipping On Your Shipping AccountWe can ship your order on your own shipping account, if you are ordering for a business or organization and have a shipping account with FedEx or UPS.
- At Checkout, under Shipping Methods, select Ship on my account.
- Under "Order Comments" section, enter your: Carrier, Shipping Service, Account #, Zipcode, Add Insurance or No Insurance.
- For example: "Ship on our account using UPS 2nd Day Air AM, Acct #: 12345, Zipcode: 90024, Add Insurance."
- *Shipping Carrier Insurance insures the package through your shipping carrier on your account. If insurance instructions are not specified, we will automatically fully insure the package through the carrier.
Shipping Costs
If you select services other than "Free Shipping" during checkout, your order will be shipped per your selected shipping method, and the shipping fee will be added to your order/invoice. Shipping costs are provided by the shipping carriers and calculated based on shipping location, product dimensions and weight.
BoliOptics products are warranted against manufacturer’s defects in material and workmanship from the original date of purchase, for the following years:
Lifetime Warranty
Designated products marked lifetime warranty.
5 Year Warranty
Microscopes (except video and digital microscopes) come with a five (5) year factory warranty against manufacturing defects.
5/1 Year Warranty
Products with 5/1 Year Warranty means that the hardware of the microscope is under 5 year warranty, and the electrical and lighting components are under 1 year warranty.
1 Year Warranty
Includes video microscopes, digital microscopes, electrical and electronic products such as light sources, cameras, software, monitors, and electronic components.
Microscope accessories (such as microscope cameras and illuminators) come with a one (1) year warranty, except when specified in the description.
Warranty does not apply for consumable accessories and parts such as bulbs, batteries, fuses, cords, optical components or any add-on accessories such as mechanical specimen holders that are not built into the microscope stage as an integral part of the original manufacture, etc.
Warranty does not cover ordinary wear and tear or damage caused by improper use or accidents (drops).
Warranty does not cover products that have become inoperable due to lack of maintenance.
Warranty is void when products are disassembled, structural parts were opened up, removed, unscrewed, tampered with, or broken during use or in the user's possession.
Warranty is void when product QR Codes or Barcode Stickers containing the Product's Serial Number are removed from the product.
Customers are responsible for round-way shipping for warranty services.
BoliOptics Return Policy
BoliOptics offers a thirty (30) day return window beginning on the date of your purchase on most items.
To receive a 100% refund, items must be returned in New and Original Condition, with all parts, accessories, and original product packaging included.
- Products missing the original packaging or instruction manuals are subject to a 20% restocking fee.
- Products missing parts or accessories are subject to a higher restocking fee.
- Products damaged during use (scratched, chipped, parts broken), disassembled from the original manufacturing or tampered with, are not accepted for returns or refunds. Our return policy does not cover ordinary wear and tear or damage caused by improper use or accidents.
- Microscope slides, coverslips, and eye guards are non-returnable.
- Items marked "Final Sale" are not eligible for return or refund due to change of mind. We are committed to ensuring the quality of all our products. If you receive a final sale item that has an issue, please contact us as soon as possible, and we will resolve any issue on a case by case basis.
When packaging the return, protect the item and original packaging.
- We recommend using the original packaging materials to ensure the product is safe during return shipping.
- If you do not have the original packaging materials, and there is extra room in the box, fill the extra space with padding (paper or shipping peanuts) so the product won't move around during transportation.
Customers are responsible for the return shipping label cost, if the product was not defective.
It can take up to 7 business days for an item to reach us once you ship it. Once we receive the item, it takes 5-7 business days to process the return and refund.
If you have any questions, please an email us at sales@bolioptics.com
Technical Specifications
| Optical System | Infinite |
| System Optical Magnification | 8-80X |
| Expandable System Optical Magnification (Optional Parts Required) | 2.4-320X |
| Total Magnification | 8-80X |
| Standard Eyepiece | 10X Adjustable Eyepiece |
| Standard Objective | 1X Infinity Plan Achromatic Objective |
| System Field of View | Dia. 3-30mm |
| Expandable System Field of View | Dia. 0.75-100mm |
| System Working Distance | 78mm |
| Expandable System Working Distance | 32.5-276mm |
| 0-35° Stereo Binocular Head | |
| Eye Tube Optical System | Infinite |
| Eye Tube Type | For Stereo Microscope |
| Eye Tube Adjustment Mode | Siedentopf |
| Eye Tube Angle | 0-35° |
| Erect/Inverted Image | Erect image |
| Eye Tube Rotatable | 360° Degree Rotatable |
| Interpupillary Adjustment | 56-143mm |
| Eye Tube Inner Diameter | Dia. 30mm |
| Eye Tube Fixing Mode | Elastic Tube locking |
| Eye Tube Size for Scope Body/Carrier | Dia. 60mm |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 1.38kg (3.04lbs) |
| 10X Adjustable Eyepiece (Pair Dia. 30/FN24) | |
| Eyepiece Type | Adjustable Eyepiece |
| Eyepiece Optical Magnification | 10X |
| Plan Eyepiece | Plan Eyepiece |
| Eyepiece Size for Eye Tube | Dia. 30mm |
| Eyepiece Field of View | Dia. 24mm |
| Eyepoint Type | High Eyepoint Eyepiece |
| Eyepiece Size for Reticle | Dia. 27mm |
| Eyepiece Diopter Correction | ±5° |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Net Weight | 0.14kg (0.30lbs) |
| Applied Field | For PZ0401, PZ0801 Series Microscope |
| 1X Infinity Plan Achromatic Objective | |
| Objective Optical System | Infinite |
| Objective Optical Magnification | 1X |
| Objective Type | Plan Achromatic Objective |
| Objective Working Distance | 78mm |
| Numerical Aperture (N.A.) | N.A. 0.08 |
| Objective Screw Thread | M58x1.25mm |
| Objective Outer Diameter | Dia. 60mm |
| Objective Height | 57mm |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Net Weight | 0.40kg (0.88lbs) |
| Applied Field | For PZ0401 Series Microscope, Nikon SMZ 800/1000 Microscope |
| 0.8-8X Parallel Zoom Body | |
| Body Optical System | Infinite |
| Body Magnification | 0.8-8X |
| Zoom Range | 0.8-8X |
| Zoom Ratio | 1:10 |
| Zoom Operating Mode | With Two Horizontal Knobs |
| Body Mounting Size for Stand | Dia. 76mm |
| Body Mount Type for Eye Tube | Fastening Screw |
| Body Mounting Size for Eye Tube | Dia. 67mm |
| Objective Screw Thread | M58x1.25mm |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 0.91kg (2.01lbs) |
| Gliding Arm Boom Stand | |
| Stand Type | Ball Bearing Boom Stand |
| Vertical Post Height | 384mm |
| Maximum Vertical Post Extended Length | 254mm |
| Vertical Post Diameter | Dia. 37.2mm |
| Cross Adapter Type | Cross Hole Adapter |
| Horizontal Arm Type | Horizontal Post |
| Horizontal Arm Length | 550mm |
| Mounting Hole on the Top of Horizontal Arm | 5/8 in. End Adapter |
| Horizontal Rotation Angle | 360° Degree Rotatable |
| Horizontal Arm Travel Distance on Z-Axis | 266mm |
| Horizontal Arm Stretch Range | 355mm |
| Horizontal Arm Maximum Load | 9.50kg (20.94lbs) |
| Horizontal Arm Travel Mode on Horizontal Direction | Manual |
| Horizontal Arm Travel Mode on Z Direction | Manual |
| Base Type | Heavy Duty Base |
| Base Shape | Rectangle |
| Base Dimensions | 285x260x18mm |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Net Weight | 14.35kg (31.64lbs)，Base Only: 9.05kg (20lbs) |
| 76mm E-Arm | |
| Holder Adapter Type | Dia. 76mm Scope Holder |
| Focus Distance | 50mm |
| Coarse Focus Distance per Rotation | 20mm |
| E-Arm Rotation Range on Horizontal Direction | 360° |
| E-Arm Rotation Range on Z Direction | 180° |
| E-Arm Mounting Adapter | 5/8 in. End Adapter |
| Center Distance from E-Arm Adapter to Scope Holder | 130mm |
| E-Arm Horizontal Adjustment Screw | Horizontal Adjustable |
| Safety Protection Against Falling Screw | With Safety protection against falling Screw |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 0.84kg (1.85lbs) |
| Filter (Blue) | |
| Filter Color | Light Blue |
| Filter Size | Dia. 30mm |
| Filter Switch Type | Plug Type |
| Material | Glass |
| Net Weight | 0.01kg (0.02lbs) |
| 150W Fiber Optic Illuminator | |
| Light Source Type | Halogen Light |
| Power Supply Adjustable | Light Adjustable |
| Power Box Light Port | Single Hole |
| Fiber Cable Adapter Size | 5/8 in. End Adapter |
| Power Box Panel Meter Display | Pointer Panel Meter/Scale |
| Power Box Cooling System | Fan Cooling system |
| Power Box Dimensions | 260x160x125mm |
| Replacement Bulb | BU99032301 |
| Output Power | 150W |
| Input Voltage | AC 90-240V 50/60Hz |
| Output Voltage | DC 21V |
| Power Cord Connector Type | USA 3 Pins |
| Power Cable Length | 1.8m |
| Material | Plastic |
| Color | White |
| Net Weight | 1.77kg (3.90lbs) |
| 460mm Dual Pipe Light Guide | |
| Optical Fiber Cable Type | Gooseneck Dual Pipe Light |
| Fiber Light Output Port Size | Dia. 5mm |
| Fiber Cable Output Port Adapter Size | Dia. 8mm |
| Fiber Light Input Port Size | Dia. 7mm |
| Fiber Cable Input Port Adapter Size | 5/8 in. End Adapter |
| Pipe Material | Gooseneck Fiber Cable |
| Optical Fiber Cable Length | 460mm |
| Pipe Diameter | Dia. 12.4mm |
| Pipe Color | Silver |
| Flexural Property | Min. Bending Radius ≥30D |
| Fiber Cable Mounting Type | Fastening Screw |
| Fiber Condenser Light Spot Adjustable | Adjustable |
| Material | Metal |
| Color | Silver |
| Net Weight | 0.60kg (1.32lbs) |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 20.35kg (44.86lbs) |
| PZ0401 | PZ02080266 |
Warranty
5/1 Years
Certification
| Contains | ||||||||||||||||||||||||||||
| Parts Including | ||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||
| Packing | |
| Packaging Type | Carton Packaging |
| Packaging Material | Corrugated Carton |
| Packaging Dimensions(1) | 26x17.5x18cm (10.236x6.890x7.086″) |
| Packaging Dimensions(2) | 26x18x15cm (10.236x7.086x5.905″) |
| Packaging Dimensions(3) | 29x16x18cm (11.417x6.299x7.087″) |
| Packaging Dimensions(4) | 51x43x18cm (20x17x7″) |
| Packaging Dimensions(5) | 32x21x20cm (12.598x8.268x7.874″) |
| Packaging Dimensions(6) | 24.5x24.5x4cm (9.646x9.646x1.575″) |
| Inner Packing Material | Plastic Bag |
| Ancillary Packaging Materials | Styrofoam |
| Gross Weight | 23.54kg (51.90lbs) |
| Minimum Packaging Quantity | 1pc |
| Transportation Carton | Carton Packaging |
| Transportation Carton Material | Corrugated Carton |
| Transportation Carton Dimensions(1) | 26x17.5x18cm (10.236x6.890x7.086″) |
| Transportation Carton Dimensions(2) | 26x18x15cm (10.236x7.086x5.905″) |
| Transportation Carton Dimensions(3) | 29x16x18cm (11.417x6.299x7.087″) |
| Transportation Carton Dimensions(4) | 51x43x18cm (20x17x7″) |
| Transportation Carton Dimensions(5) | 32x21x20cm (12.598x8.268x7.874″) |
| Transportation Carton Dimensions(6) | 24.5x24.5x4cm (9.646x9.646x1.575″) |
| Total Gross Weight of Transportation(kilogram) | 23.54 |
| Total Gross Weight of Transportation(pound) | 51.90 |
| Quantity of One Transportation Carton | 6pc |
| Microscope Optical Data Sheet | ||||||||||||
| P/N | Objective | Objective Working Distance | Eyepiece | |||||||||
| PZ04013221 (10X Dia. 24mm) | SZ04023421 (15X Dia. 16mm) | SZ17013421 (15X Dia. 16mm) | SZ04023621 (20X Dia. 12.5mm) | SZ17013621 (20X Dia. 12.5mm) | ||||||||
| Magnification | Field of View(mm) | Magnification | Field of View(mm) | Magnification | Field of View(mm) | Magnification | Field of View(mm) | Magnification | Field of View(mm) | |||
| PZ04014111 | 0.3X | 276mm | 2.4-24X | 10-100mm | 3.6-36X | 6.67-66.67mm | 3.6-36X | 6.67-66.67mm | 4.8-48X | 5.21-52.08mm | 4.8-48X | 5.21-52.08mm |
| PZ04014211 | 0.5X | 186mm | 4-40X | 6-60mm | 6-60X | 4-40mm | 6-60X | 4-40mm | 8-80X | 3.12-31.25mm | 8-80X | 3.12-31.25mm |
| PZ04014241 | 0.5X | 126mm | 4-40X | 6-60mm | 6-60X | 4-40mm | 6-60X | 4-40mm | 8-80X | 3.12-31.25mm | 8-80X | 3.12-31.25mm |
| PZ08014311 | 0.7X | 135mm | 5.6-56X | 4.29-42.86mm | 8.4-84X | 2.86-28.57mm | 8.4-84X | 2.86-28.57mm | 11.2-112X | 2.23-22.32mm | 11.2-112X | 2.23-22.32mm |
| PZ04014431 | 1X | 78mm | 8-80X | 3-30mm | 12-120X | 2-20mm | 12-120X | 2-20mm | 16-160X | 1.56-15.62mm | 16-160X | 1.56-15.62mm |
| PZ04014631 | 2X | 32.5mm | 16-160X | 1.5-15mm | 24-240X | 1-10mm | 24-240X | 1-10mm | 32-320X | 0.78-7.81mm | 32-320X | 0.78-7.81mm |
| 1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification | ||||||||||||
| 2. Field of View=Eyepiece Field of View /（Objective Optical Magnification*Body Magnification） | ||||||||||||
| 3. The Darker background items are Standard items, the white background items are optional items. | ||||||||||||
