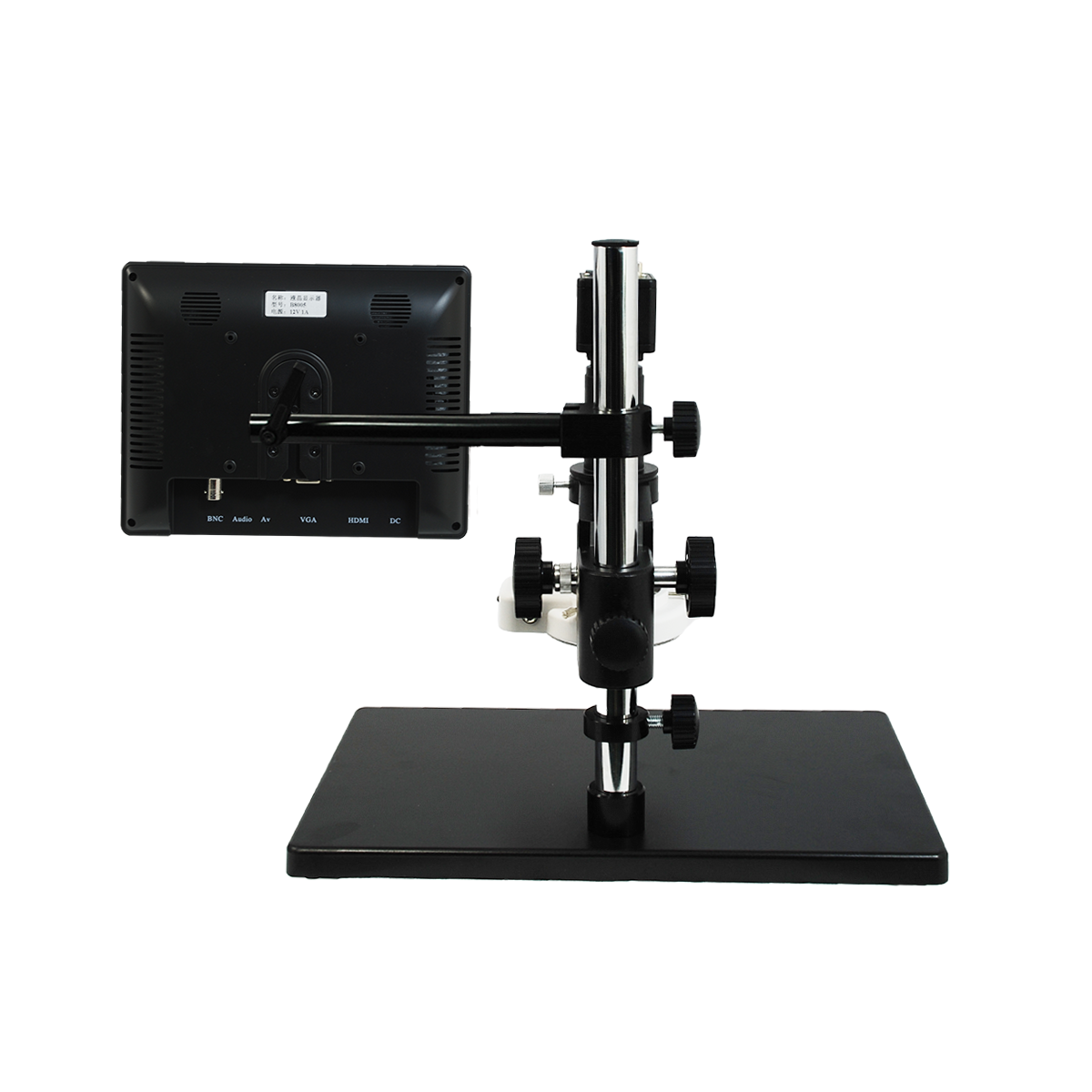

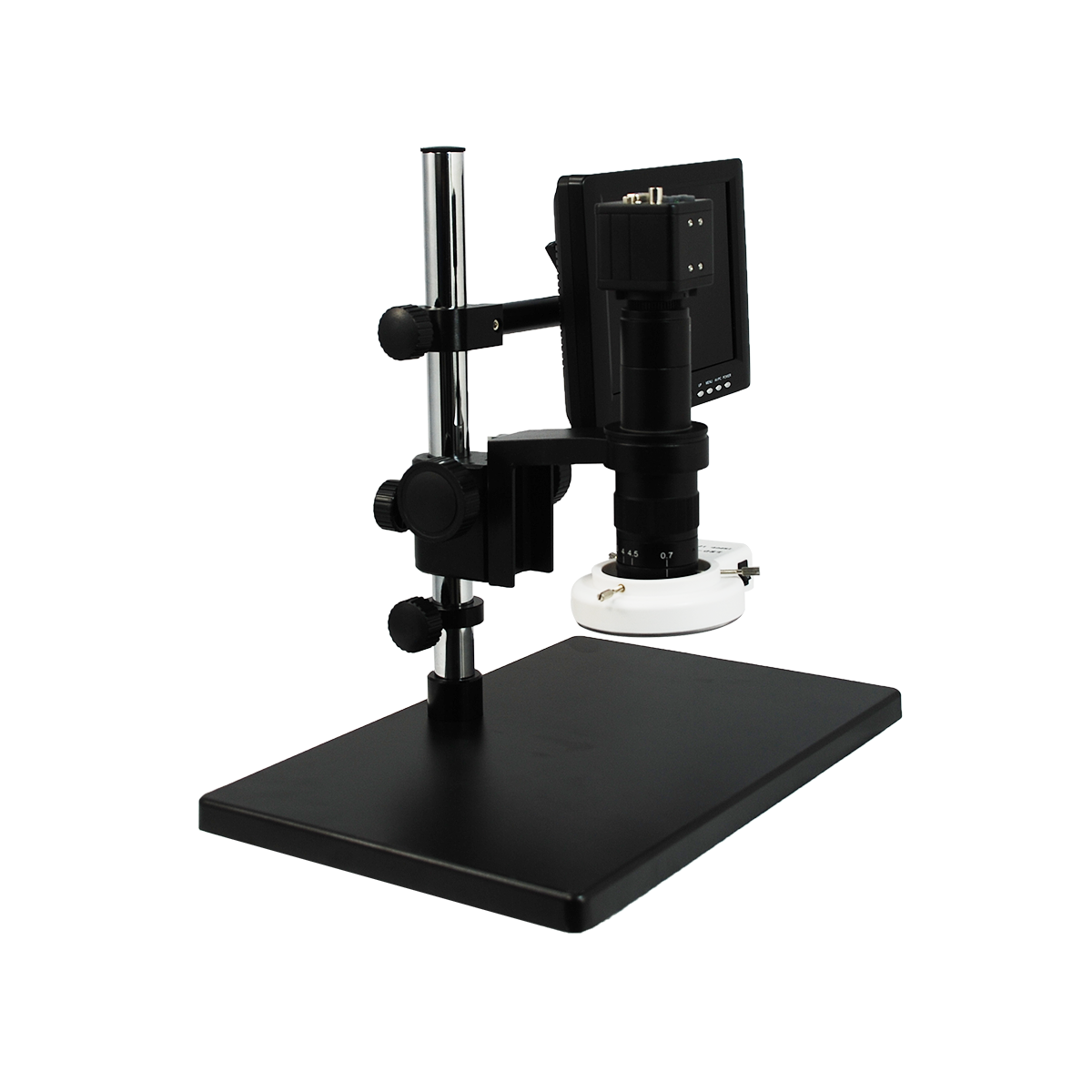

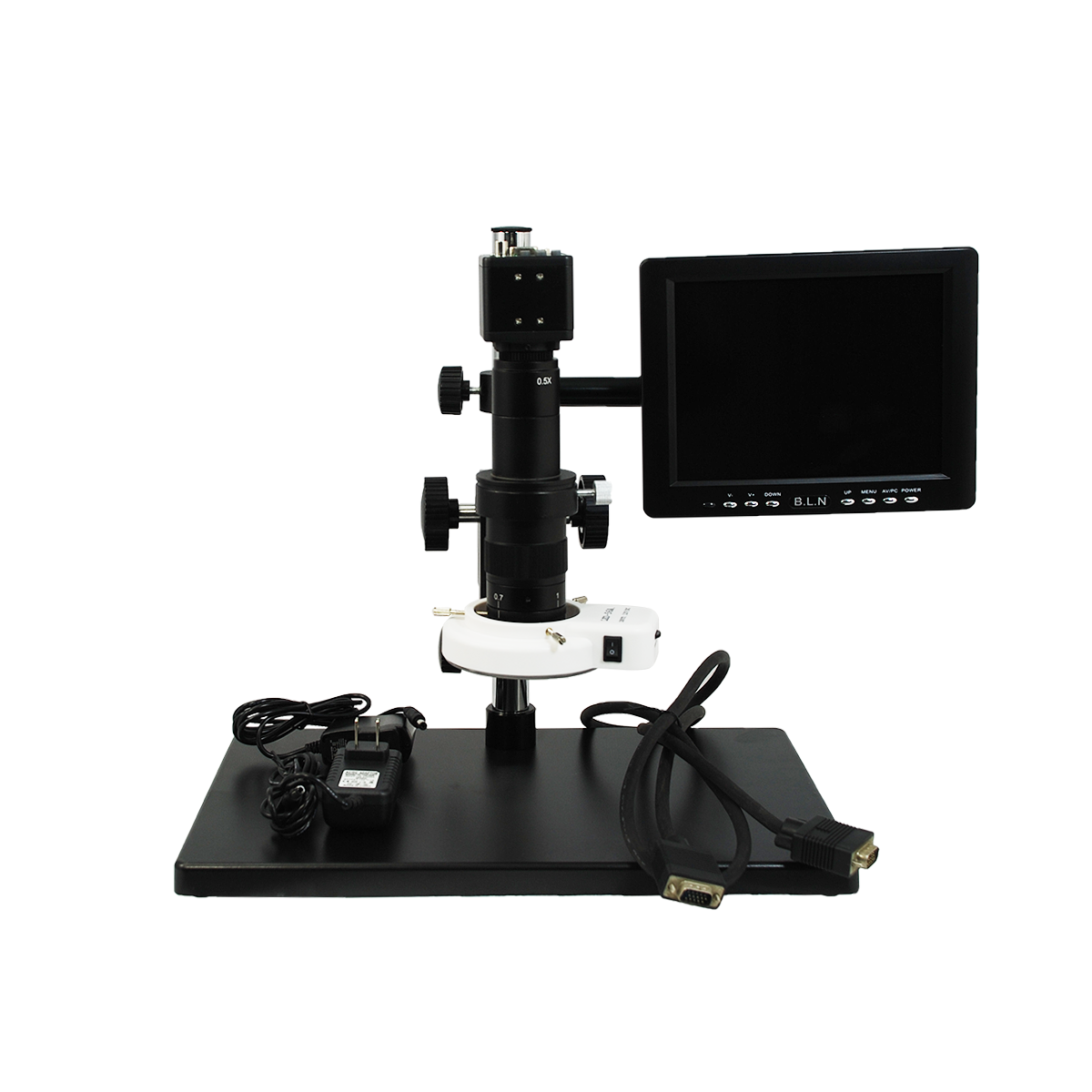

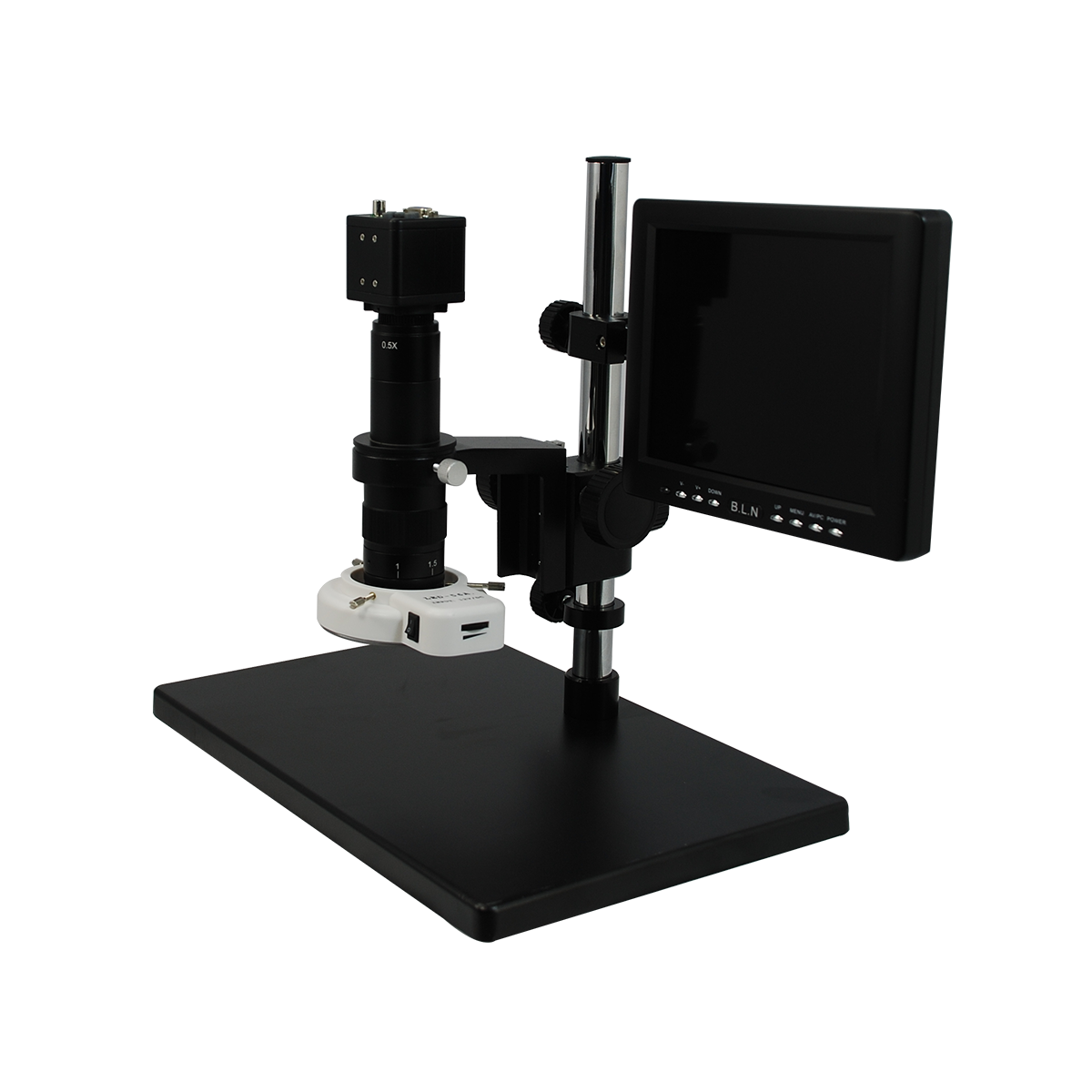

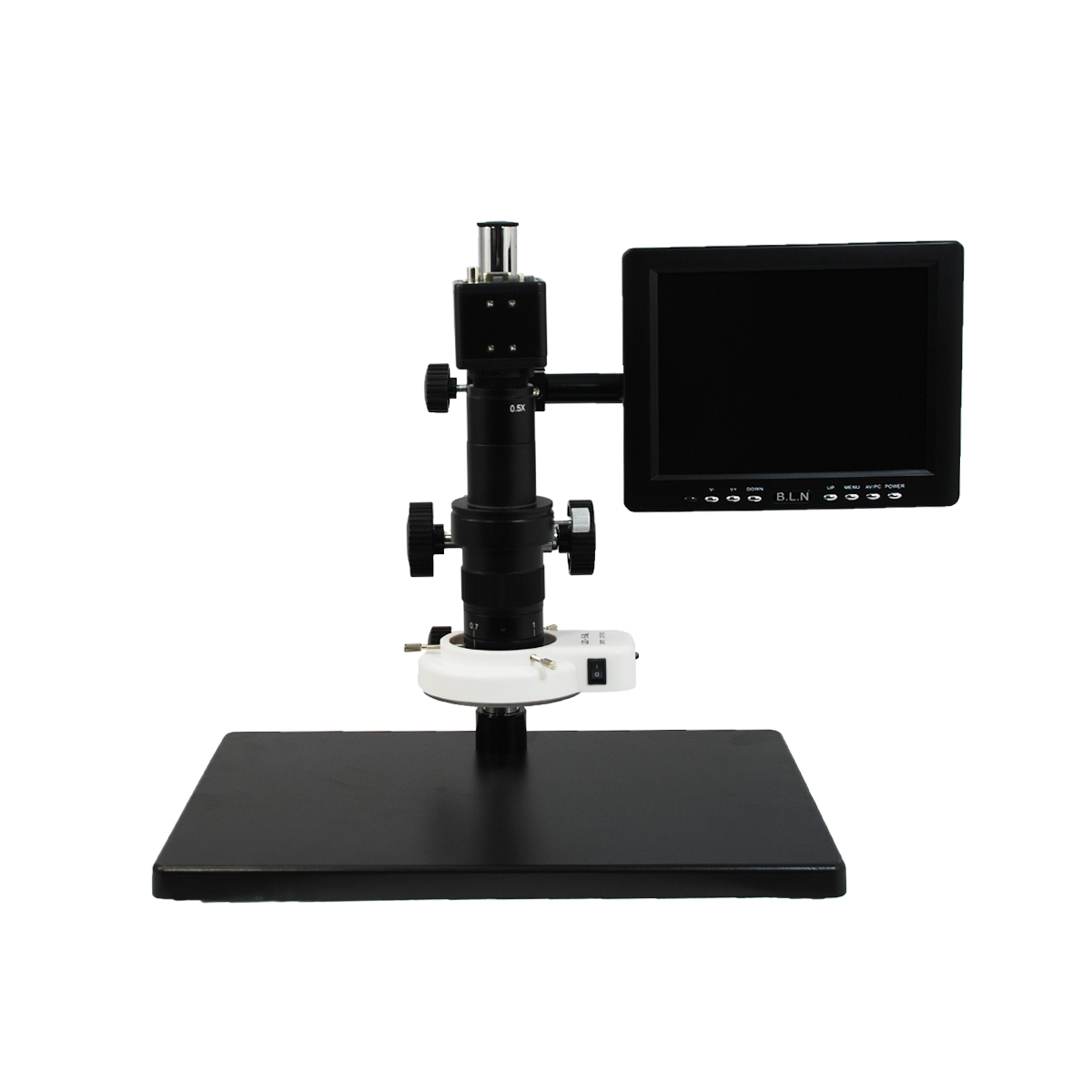

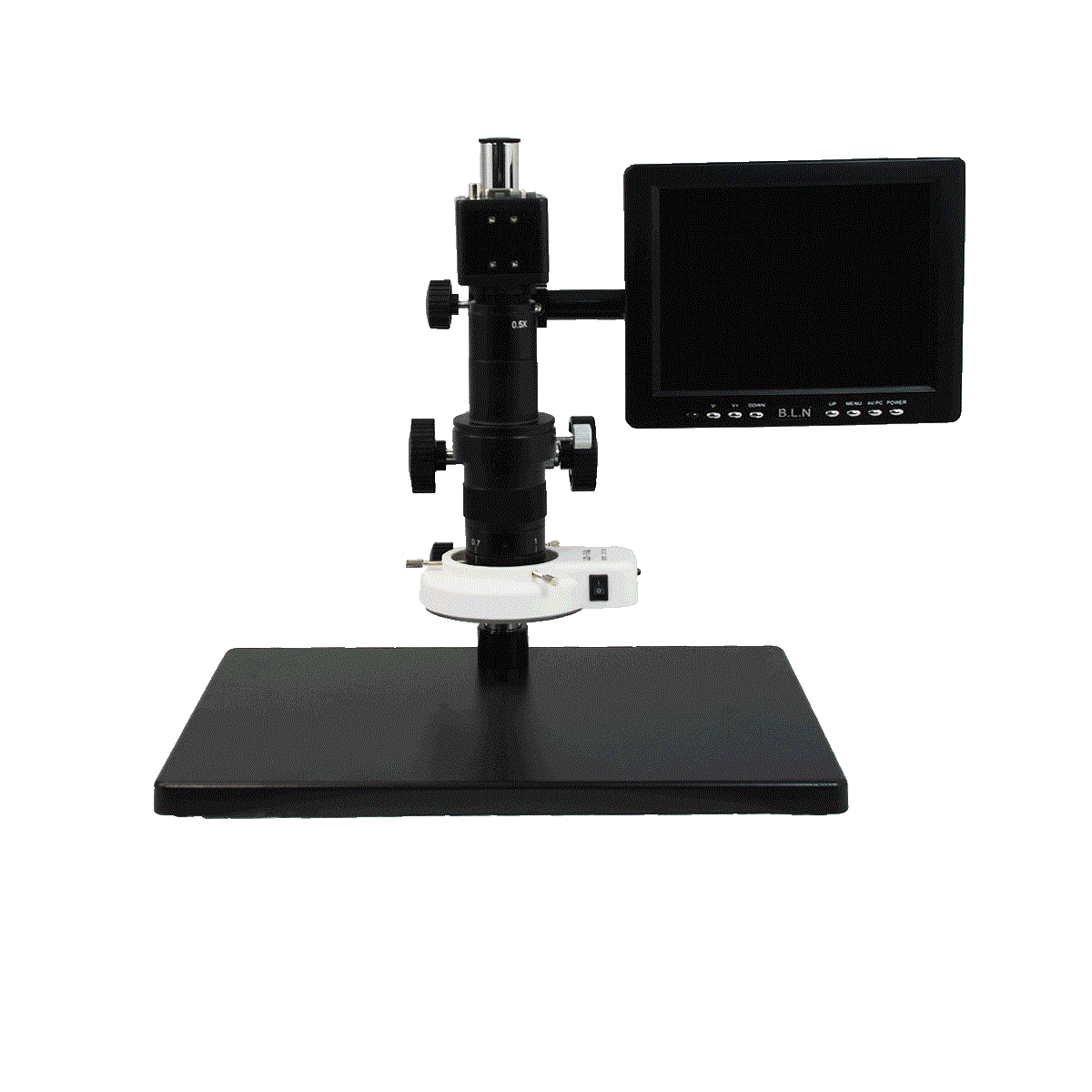

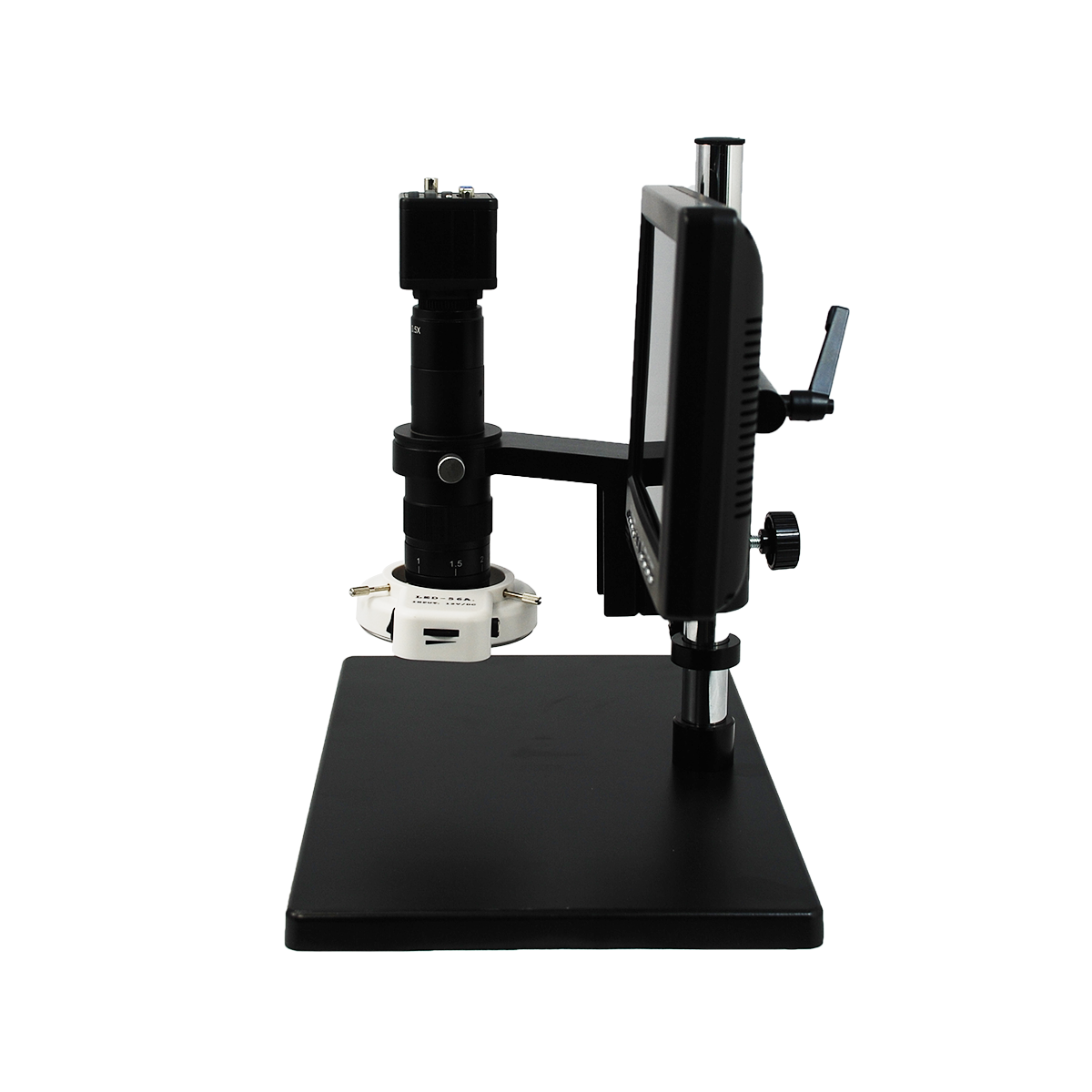

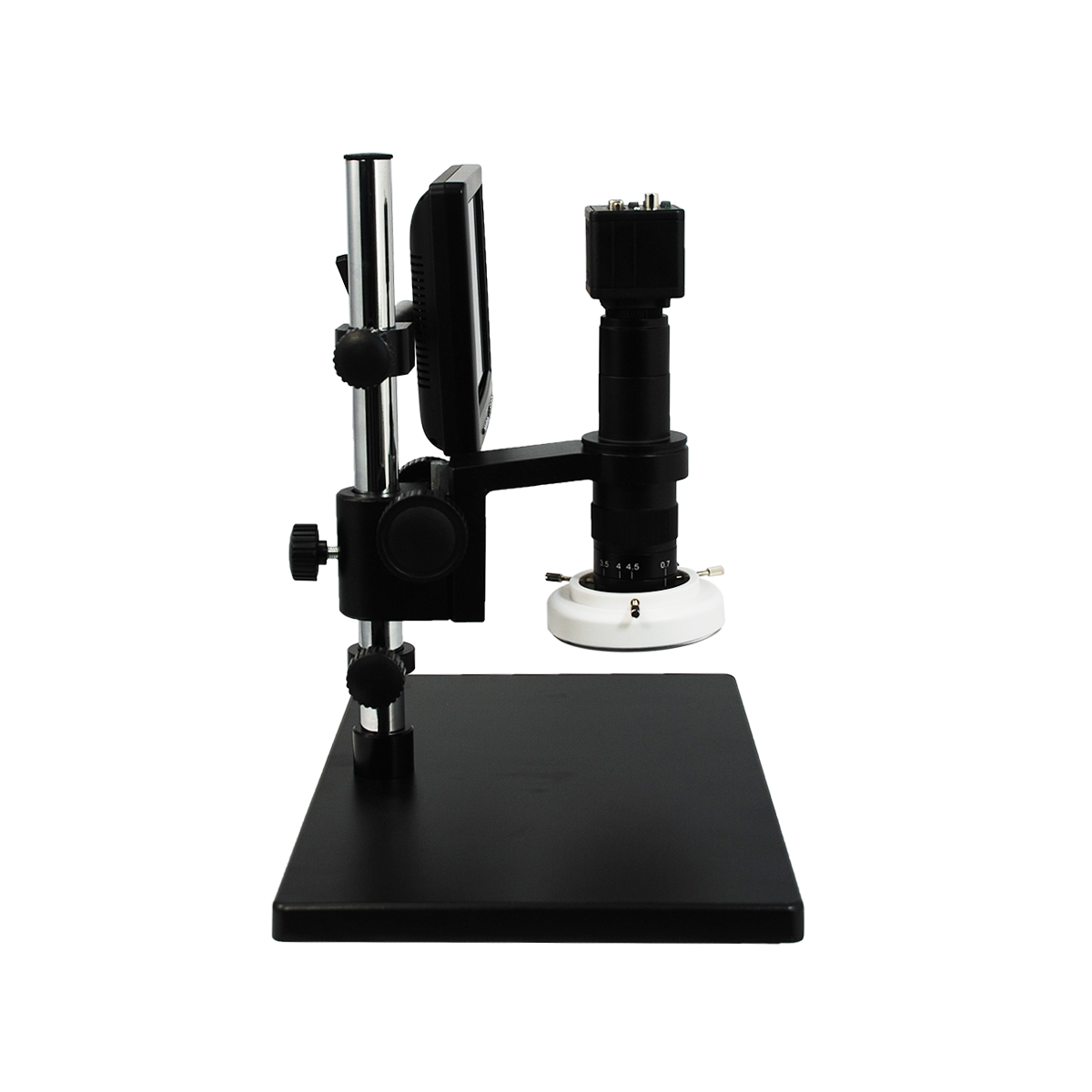

0.25-1.58X 2.0 Megapixels CMOS LED Light LED Reflection Light Post Stand Video Zoom Microscope MZ19020104
Pre-Order. Place your order and we will email you an estimated delivery date.
0.25-1.58X 2.0 Megapixels CMOS LED Light LED Reflection Light Post Stand Video Zoom Microscope MZ19020104
Finite. Total Magnification: 0.25-1.58X. 1X Objective. Standard Coupler: 0.35X. Zoom Ratio: 1:6.4. Body Mounting Size for Stand: Dia. 50mm. Post Stand. Illumination Type: LED Reflection Light. LED Light. Light Adjustable. CMOS. 2.0 Megapixels. VGA. Screen Size: 8in. Input Voltage: AC 100-240V 50/60Hz. Input Voltage: DC 12V. VGA Color Digital Camera，8” LCD Color Monitor，Monitor Holder，LED Ring Light.
We Offer World Wide Shipping (We are Based in California, USA)
Free Shipping within the Contiguous U.S.
We offer Free Economy Ground Shipping on all orders to U.S. contiguous locations placed on our website. When you select Free Shipping at checkout, we’ll ship your order with the most cost-effective shipping method. If you prefer a specific carrier, please select a paid shipping option instead of Free Shipping.
Note on Purchase Orders: Free shipping is only offered for orders placed online, and paid by Credit Card/Debit Card, or PayPal on our website. You may place your Purchase Order online, and enter your PO # in the Order Comments, and this PO# will show on your Packing Slip. Free shipping does not apply to Purchase Orders sent by email. If you are a company or university and emailing us a Purchase Order, the shipping fee will be added onto your invoice. Alternatively, you may provide a shipping account for us to ship the order under.
Free shipping does not apply to orders of any international and non-contiguous U.S. locations, such as Alaska, Hawaii, all off-shore U.S. territories and possessions, American Samoa, Guam, Northern Mariana Islands, Puerto Rico, and the U.S. Virgin Islands.
Expedited Shipping
We offer expedited shipping via FedEx and UPS.
For all expedited shipping services, such as Overnight, Next Day, etc - While we will do our part to ensure the packages are received by the shipping carriers to meet the shipping cut off times, please note that once the package leaves our warehouse, we are no longer responsible for the delivery of the package. The shipping carrier is responsible for delivering your package.
Shipping On Your Shipping AccountWe can ship your order on your own shipping account, if you are ordering for a business or organization and have a shipping account with FedEx or UPS.
- At Checkout, under Shipping Methods, select Ship on my account.
- Under "Order Comments" section, enter your: Carrier, Shipping Service, Account #, Zipcode, Add Insurance or No Insurance.
- For example: "Ship on our account using UPS 2nd Day Air AM, Acct #: 12345, Zipcode: 90024, Add Insurance."
- *Shipping Carrier Insurance insures the package through your shipping carrier on your account. If insurance instructions are not specified, we will automatically fully insure the package through the carrier.
Shipping Costs
If you select services other than "Free Shipping" during checkout, your order will be shipped per your selected shipping method, and the shipping fee will be added to your order/invoice. Shipping costs are provided by the shipping carriers and calculated based on shipping location, product dimensions and weight.
BoliOptics products are warranted against manufacturer’s defects in material and workmanship from the original date of purchase, for the following years:
Lifetime Warranty
Designated products marked lifetime warranty.
5 Year Warranty
Microscopes (except video and digital microscopes) come with a five (5) year factory warranty against manufacturing defects.
5/1 Year Warranty
Products with 5/1 Year Warranty means that the hardware of the microscope is under 5 year warranty, and the electrical and lighting components are under 1 year warranty.
1 Year Warranty
Includes video microscopes, digital microscopes, electrical and electronic products such as light sources, cameras, software, monitors, and electronic components.
Microscope accessories (such as microscope cameras and illuminators) come with a one (1) year warranty, except when specified in the description.
Warranty does not apply for consumable accessories and parts such as bulbs, batteries, fuses, cords, optical components or any add-on accessories such as mechanical specimen holders that are not built into the microscope stage as an integral part of the original manufacture, etc.
Warranty does not cover ordinary wear and tear or damage caused by improper use or accidents (drops).
Warranty does not cover products that have become inoperable due to lack of maintenance.
Warranty is void when products are disassembled, structural parts were opened up, removed, unscrewed, tampered with, or broken during use or in the user's possession.
Warranty is void when product QR Codes or Barcode Stickers containing the Product's Serial Number are removed from the product.
Customers are responsible for round-way shipping for warranty services.
BoliOptics Return Policy
BoliOptics offers a thirty (30) day return window beginning on the date of your purchase on most items.
To receive a 100% refund, items must be returned in New and Original Condition, with all parts, accessories, and original product packaging included.
- Products missing the original packaging or instruction manuals are subject to a 20% restocking fee.
- Products missing parts or accessories are subject to a higher restocking fee.
- Products damaged during use (scratched, chipped, parts broken), disassembled from the original manufacturing or tampered with, are not accepted for returns or refunds. Our return policy does not cover ordinary wear and tear or damage caused by improper use or accidents.
- Microscope slides, coverslips, and eye guards are non-returnable.
- Items marked "Final Sale" are not eligible for return or refund due to change of mind. We are committed to ensuring the quality of all our products. If you receive a final sale item that has an issue, please contact us as soon as possible, and we will resolve any issue on a case by case basis.
When packaging the return, protect the item and original packaging.
- We recommend using the original packaging materials to ensure the product is safe during return shipping.
- If you do not have the original packaging materials, and there is extra room in the box, fill the extra space with padding (paper or shipping peanuts) so the product won't move around during transportation.
Customers are responsible for the return shipping label cost, if the product was not defective.
It can take up to 7 business days for an item to reach us once you ship it. Once we receive the item, it takes 5-7 business days to process the return and refund.
If you have any questions, please an email us at sales@bolioptics.com
Technical Specifications
| Optical System | Finite |
| System Optical Magnification | 0.25-1.58X |
| Expandable System Optical Magnification (Optional Parts Required) | 0.18-9X |
| Total Magnification | 0.25-1.58X |
| Standard Objective | 1X Objective |
| Standard Coupler | 0.35X |
| System Field of View | Dia. 4.2-26.9mm |
| System Working Distance | 100mm |
| 0.7-4.5X Video Zoom Body | |
| Body Optical System | Finite |
| Body Magnification | 0.7-4.5X |
| Zoom Range | 0.7-4.5X |
| Zoom Ratio | 1:6.4 |
| Zoom Operating Mode | With the Nosepiece |
| Body Mounting Size for Stand | Dia. 50mm |
| Body Mount Type for Coupler | Fastening Screw |
| Body Mount Size for Coupler | Dia. 27mm |
| Nosepiece Adapter Size for Ring Light | Dia. 46mm |
| Built-in Objective Magnification | 1X |
| Objective Working Distance | 100mm |
| Objective Screw Thread | M42x0.75mm |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Net Weight | 0.42kg (0.93lbs) |
| 50mm Post Stand | |
| Stand Type | Post Stand |
| Holder Adapter Type | Dia. 50mm Scope Holder |
| Vertical Post Height | 280mm |
| Vertical Post Diameter | Dia. 25mm |
| Base Type | Table Base |
| Base Shape | Rectangle |
| Base Dimensions | 380x260x20mm |
| Focus Mode | Manual |
| Focus Distance | 60mm |
| Coarse Focus Distance per Rotation | 26mm |
| Center Distance from Hole to Scope Holder | 150mm |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Net Weight | 3.55kg (7.83lbs) |
| Dimensions | 380x260x370mm (14.961x10.236x14.567 in. ) |
| 50/25mm Through Hole Focus Rack | |
| Holder Adapter Type | Dia. 50mm Scope Holder |
| Focus Mode | Manual |
| Coarse/Fine Focus Type | Coarse Focus |
| Focus Distance | 60mm |
| Coarse Focus Distance per Rotation | 30mm |
| Post Hole Diameter of Focusing Rack | Dia. 25mm |
| Center Distance from Hole to Scope Holder | 142mm |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | Black |
| Net Weight | 0.85kg (1.87lbs) |
| Post Hole Diameter of Focusing Rack | Dia. 25mm |
| Load for Monitor | Smaller than 10 in. Monitor |
| Mounting Position for Monitor | Horizontal Bar |
| Mounting Type of Monitor | Fixed |
| Surface Treatment | Electroplating |
| Material | Metal |
| Color | Black |
| Net Weight | 0.28kg (0.62lbs) |
| Illumination Type | LED Reflection Light |
| Top Illumination Type | LED |
| LED Ring Light (3.5W ID61mm 56Bulbs) | |
| Light Source Type | LED Light |
| Ring I.D. Size | Dia. 61mm |
| LED Quantity | 56 |
| Power Supply Adjustable | Light Adjustable |
| Bulb Color Temperature | 6400K |
| Output Power | 3.5W |
| Input Voltage | AC 100-240V 50/60Hz |
| Output Voltage | DC 12V |
| Power Cord Connector Type | USA 2 Pins |
| Power Cable Length | 1.8m |
| Material | Plastic |
| Color | White |
| Net Weight | 0.15kg (0.33lbs) |
| Screw Model | M3x24mm |
| 0.35X Coupler | |
| Coupler Mount Type for Body | Fastening Screw |
| Coupler Mount Size for Body | Dia. 28mm |
| Coupler for Microscope Type | Video Zoom Lens Compatible |
| Coupler Magnification | 0.35X |
| For Camera Sensor Size | Under 1/3 in. |
| C/CS-Mount Coupler | C-Mount |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Net Weight | 0.11kg (0.24lbs) |
| Applied Field | For MZ1902 Series Video Zoom Body |
| 2M VGA Color Digital Camera | |
| Image Sensor | CMOS |
| Image Sensor Size | 1/2.7 in. |
| Camera Maximum Pixels | 2.0 Megapixels |
| Camera Resolution | 1920x1080 |
| Camera Signal Output Port | VGA |
| Camera Lens Mount | C-Mount |
| Transmission Frame Rate | 30fps |
| White Balance | Manual/Auto |
| Image Freeze Function | Image Freeze |
| Number of Crosshairs | 8 Movable Lines |
| Language | English/Chinese (Simplified) |
| Camera Housing Material | Metal |
| Camera Housing Size | 65x52x52mm |
| Camera Housing Color | Black |
| Input Voltage | DC 12V |
| Surface Treatment | Electroplating |
| Material | Metal |
| Color | Black |
| Net Weight | 0.14kg (0.31lbs) |
| 8 in. LCD Color Monitor | |
| Screen Size | 8in |
| Screen Aspect Ratio | 4:3 |
| Monitor Input Signal Format | BNC/VGA |
| Monitor Signal Format | NTSC/PAL Auto-Switch |
| Screen Backlight | LCD Display |
| Monitor Operating Temperature | 10°C~40°C |
| Monitor Operating Humidity | 10%-80% |
| Monitor Housing Material | Plastic |
| Monitor Housing Size | 205x160x40mm |
| Monitor Housing Color | Black |
| Input Voltage | AC 100-240V 50/60Hz |
| Output Voltage | DC 12V |
| Net Weight | 0.65kg (1.43lbs) |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | Black, White |
| Net Weight | 4.00kg (8.82lbs) |
| Notes | VGA Color Digital Camera，8” LCD Color Monitor，Monitor Holder，LED Ring Light |
| MZ1902 | MZ19020104 |
Warranty
5/1 Years
Certification
| Contains | |||||||||||||||||||||||||
| Parts Including | |||||||||||||||||||||||||
| |||||||||||||||||||||||||
| Desiccant Bag | 1 Bag | ||||||||||||||||||||||||
| Packing | |
| Packaging Type | Carton Packaging |
| Packaging Material | Corrugated Carton |
| Packaging Dimensions(1) | 44.5x32.5x23cm (17.520x12.795x9.055″) |
| Inner Packing Material | Plastic Bag |
| Ancillary Packaging Materials | Expanded Polystyrene |
| Gross Weight | 4.61kg (10.16lbs) |
| Minimum Packaging Quantity | 1pc |
| Transportation Carton | Carton Packaging |
| Transportation Carton Material | Corrugated Carton |
| Transportation Carton Dimensions(1) | 44.5x32.5x23cm (17.520x12.795x9.055″) |
| Total Gross Weight of Transportation(kilogram) | 4.61 |
| Total Gross Weight of Transportation(pound) | 10.16 |
| Quantity of One Transportation Carton | 1pc |
| Video Microscope Optical Data Sheet | |||
| P/N | Objective | Coupler | |
| MZ19026111 (0.35X) | MZ19026131 (0.5X) | ||
| Magnification | Magnification | ||
| MZ19021101 | 1X | 0.24-1.58X | 0.35-2.25X |
| MZ19024611 | 2X | 0.49-3.15X | 0.7-4.5X |
| 1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification | |||
| Camera Image Sensor Specifications | |||
| No. | Camera Image Sensor Size | Camera image Sensor Diagonal | |
| （mm） | （inch） | ||
| 1 | 1/4 in. | 4mm | 0.157" |
| 2 | 1/3 in. | 6mm | 0.236" |
| 3 | 1/2.8 in. | 6.592mm | 0.260" |
| 4 | 1/2.86 in. | 6.592mm | 0.260" |
| 5 | 1/2.7 in. | 6.718mm | 0.264" |
| 6 | 1/2.5 in. | 7.182mm | 0.283" |
| 7 | 1/2.3 in. | 7.7mm | 0.303" |
| 8 | 1/2.33 in. | 7.7mm | 0.303" |
| 9 | 1/2 in. | 8mm | 0.315" |
| 10 | 1/1.9 in. | 8.933mm | 0.352" |
| 11 | 1/1.8 in. | 8.933mm | 0.352" |
| 12 | 1/1.7 in. | 9.5mm | 0.374" |
| 13 | 2/3 in. | 11mm | 0.433" |
| 14 | 1/1.2 in. | 12.778mm | 0.503" |
| 15 | 1 in. | 16mm | 0.629" |
| 16 | 1/1.1 in. | 17.475mm | 0.688" |
| Digital Magnification Data Sheet | |||||
| Image Sensor Size | Image Sensor Diagonal size | Monitor | |||
| Screen Size (8in) | Screen Size (10in) | Screen Size (21.5in) | Screen Size (21.5in) | ||
| Digital Zoom Function | Digital Zoom Function | Digital Zoom Function | Digital Zoom Function | ||
| 1/2.7 in. | 6.718mm | 30.2 | 37.8 | 81.3 | 81.3 |
| 1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size | |||||
| Microscope Optical and Digital Magnifications Data Sheet | ||||||||||
| Objective | Coupler | Camera | Monitor | Video Microscope Optical Magnifications | Digital Zoom Function | Total Magnification | Field of View (mm) | |||
| PN | Magnification | PN | Magnification | Image Sensor Size | Image Sensor Diagonal size | Screen Size | ||||
| MZ19021101 | 1X | MZ19026111 | 0.35X | 1/2.7 in. | 6.718mm | 10in | 0.24-1.58X | 37.8 | 9.07-59.72X | 4.25-27.99mm |
| MZ19021101 | 1X | MZ19026111 | 0.35X | 1/2.7 in. | 6.718mm | 8in | 0.24-1.58X | 30.2 | 7.25-47.72X | 4.25-27.99mm |
| MZ19021101 | 1X | MZ19026111 | 0.35X | 1/2.7 in. | 6.718mm | 21.5in | 0.24-1.58X | 81.3 | 19.51-128.45X | 4.25-27.99mm |
| MZ19021101 | 1X | MZ19026111 | 0.35X | 1/2.7 in. | 6.718mm | 21.5in | 0.24-1.58X | 81.3 | 19.51-128.45X | 4.25-27.99mm |
| MZ19021101 | 1X | MZ19026131 | 0.5X | 1/2.7 in. | 6.718mm | 10in | 0.35-2.25X | 37.8 | 13.23-85.05X | 2.99-19.19mm |
| MZ19021101 | 1X | MZ19026131 | 0.5X | 1/2.7 in. | 6.718mm | 8in | 0.35-2.25X | 30.2 | 10.57-67.95X | 2.99-19.19mm |
| MZ19021101 | 1X | MZ19026131 | 0.5X | 1/2.7 in. | 6.718mm | 21.5in | 0.35-2.25X | 81.3 | 28.46-182.92X | 2.99-19.19mm |
| MZ19021101 | 1X | MZ19026131 | 0.5X | 1/2.7 in. | 6.718mm | 21.5in | 0.35-2.25X | 81.3 | 28.46-182.92X | 2.99-19.19mm |
| MZ19024611 | 2X | MZ19026111 | 0.35X | 1/2.7 in. | 6.718mm | 10in | 0.49-3.15X | 37.8 | 18.52-119.07X | 2.13-13.71mm |
| MZ19024611 | 2X | MZ19026111 | 0.35X | 1/2.7 in. | 6.718mm | 8in | 0.49-3.15X | 30.2 | 14.8-95.13X | 2.13-13.71mm |
| MZ19024611 | 2X | MZ19026111 | 0.35X | 1/2.7 in. | 6.718mm | 21.5in | 0.49-3.15X | 81.3 | 39.84-256.09X | 2.13-13.71mm |
| MZ19024611 | 2X | MZ19026111 | 0.35X | 1/2.7 in. | 6.718mm | 21.5in | 0.49-3.15X | 81.3 | 39.84-256.09X | 2.13-13.71mm |
| MZ19024611 | 2X | MZ19026131 | 0.5X | 1/2.7 in. | 6.718mm | 10in | 0.7-4.5X | 37.8 | 26.46-170.1X | 1.49-9.6mm |
| MZ19024611 | 2X | MZ19026131 | 0.5X | 1/2.7 in. | 6.718mm | 8in | 0.7-4.5X | 30.2 | 21.14-135.9X | 1.49-9.6mm |
| MZ19024611 | 2X | MZ19026131 | 0.5X | 1/2.7 in. | 6.718mm | 21.5in | 0.7-4.5X | 81.3 | 56.91-365.85X | 1.49-9.6mm |
| MZ19024611 | 2X | MZ19026131 | 0.5X | 1/2.7 in. | 6.718mm | 21.5in | 0.7-4.5X | 81.3 | 56.91-365.85X | 1.49-9.6mm |
| 1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification | ||||||||||
| 2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size | ||||||||||
| 3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size | ||||||||||
| 4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications | ||||||||||
