Optional Accessories

Compatible with this product

Product Description
Technical Specifications

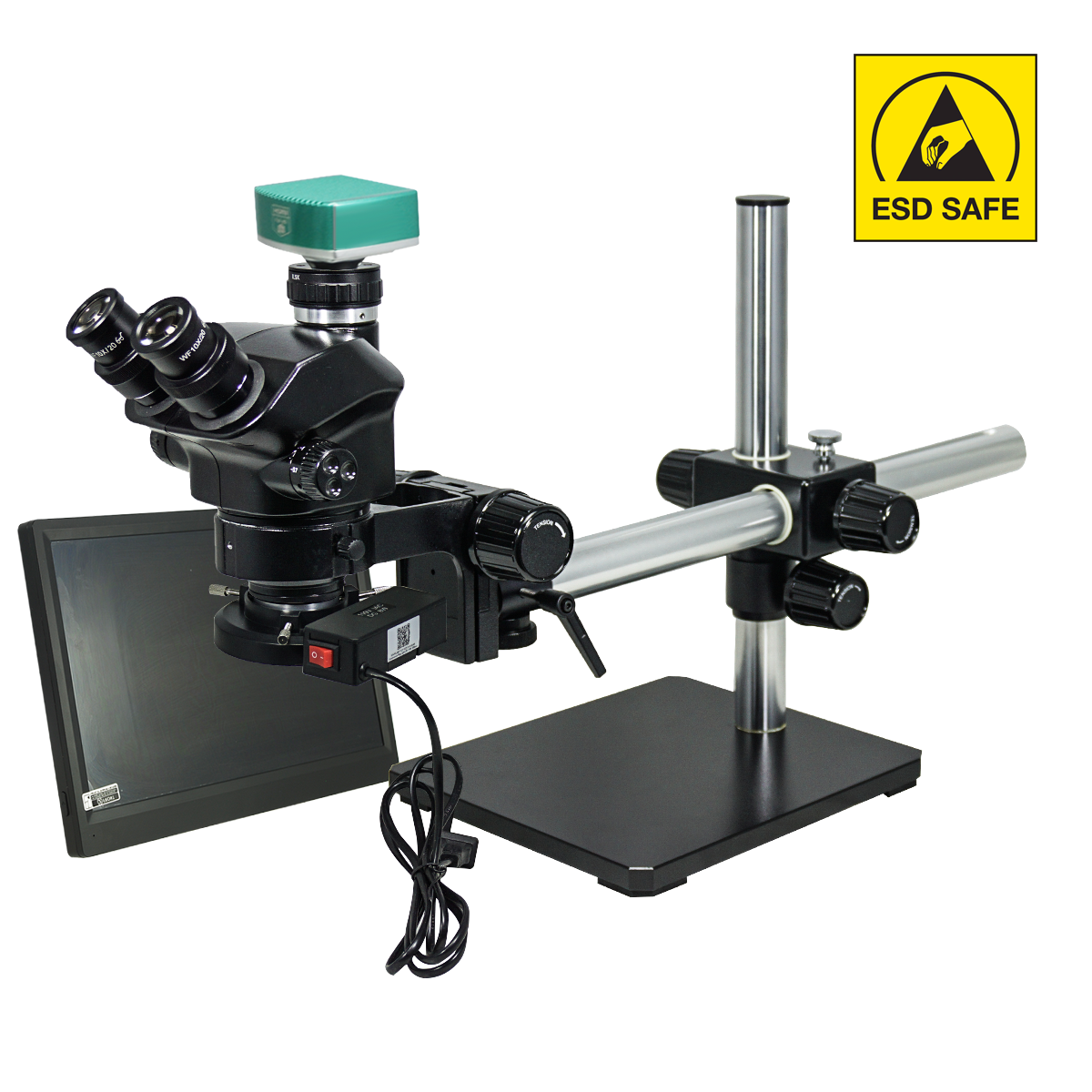

SZ02090453 ESD Trinocular Zoom Stereo Microscope
Optical System Specifications
Optical SystemFinite
System Optical Magnification7-50X
Trinocular Optical Magnification0.35-2.5X
Total Magnification7-50X
Standard Eyepiece10X High Eyepoint Eyepiece
Standard Objective1X Built-in Objective
Standard Coupler0.5X
System Field of View Dia. 4-28.57mm
System Working Distance103mm
ESD Trinocular Zoom Body
Body Optical SystemFinite
Body Magnification7-50X
Zoom Range0.7-5X
Zoom Ratio1:7.1
Zoom Operating ModeWith Two Horizontal Knobs
Observation MethodTrinocular
Body Mounting Size for Stand Dia. 76mm
Body Mount Type for CouplerThread Screw
Body Mount Size for Coupler Dia. 28mm
Nosepiece Adapter Size for Ring Light Dia. 54mm
Eye Tube Adjustment ModeSiedentopf
Eye Tube Angle45°
Erect/Inverted ImageErect image
Eye Tube Rotatable360° Degree Rotatable
Interpupillary Adjustment45-65mm
Eye Tube Inner Diameter Dia. 30mm
Eye Tube Diopter Adjustable±5°
Eyepiece TypeStandard Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 30mm
Eyepiece Field of View Dia. 20mm
Eyepoint TypeHigh Eyepoint Eyepiece
Eyepiece Size for Reticle Dia. 24mm
Eye Guard InstallationIndependent Eye Guard
Eye Guard Mount Size Dia. 36mm
Built-in Objective Magnification1X
Objective Working Distance103mm
Objective Screw ThreadM48x0.75mm
Surface TreatmentSpray Paint
ESD SafeESD Safe
MaterialMetal
ColorBlack
Net Weight1.27kg (2.80lbs)
Ring Adapter Outer Diameter Dia. 49.5mm
Ring Adapter Screw ThreadM48x0.75mm
Ring Adapter SlotTwo cut slots
Surface Treatment Polished Aluminum
MaterialAluminum
ColorWhite
Net Weight0.02kg (0.04lbs)
Applied FieldFor FS0801, SZ0801, SZ0802, SZ0501, SZ0502, SZ0503, SZ0702, SZ1901, FS0503 Series Microscope
ESD Boom Stand
Stand TypeBoom Stand
Vertical Post Height380mm
Maximum Vertical Post Extended Length254mm
Vertical Post Diameter Dia. 37mm
Cross Adapter TypeCross Hole Adapter
Horizontal Arm TypeHorizontal Post
Horizontal Arm Length544mm
Horizontal Diameter Dia. 37mm
Mounting Hole on the Top of Horizontal Arm5/8 in. End Adapter
Horizontal Rotation Angle360° Degree Rotatable
Horizontal Arm Travel Distance on Z-Axis260mm
Horizontal Arm Stretch Range420mm
Horizontal Arm Maximum Load9.50kg (20.94lbs)
Horizontal Arm Travel Mode on Horizontal DirectionManual
Horizontal Arm Travel Mode on Z DirectionManual
Base TypeHeavy Duty Base
Base ShapeRectangle
Base Dimensions285x260x15mm
Surface TreatmentPlastic Spray Coating
ESD SafeESD Safe
MaterialMetal
ColorBlack
Net Weight14.35kg (31.64lbs)
Dimensions544x285x405mm (21.417x11.220x15.945 in. )
76mm ESD E-Arm
Holder Adapter Type Dia. 76mm Scope Holder
Focus Distance50mm
Coarse Focus Distance per Rotation20mm
E-Arm Rotation Range on Horizontal Direction360°
E-Arm Rotation Range on Z Direction180°
E-Arm Mounting Adapter5/8 in. End Adapter
Center Distance from E-Arm Adapter to Scope Holder130mm
E-Arm Horizontal Adjustment ScrewHorizontal Adjustable
Safety Protection Against Falling ScrewWith Safety protection against falling Screw
Surface TreatmentPlastic Spray Coating
ESD SafeESD Safe
MaterialMetal
ColorBlack
Net Weight0.84kg (1.85lbs)
Fluorescence Ring Light (8W 110V ID55mm)
Light Source TypeFluorescence Light
Ring I.D. Size Dia. 55mm
Light Source Illuminance4000Lux
Replacement BulbBU99021110
Bulb Rated Power8W
Input VoltageAC 110V 60Hz
Power Cord Connector TypeCN 2 Pins
Power Cable Length1.3m
MaterialPlastic
ColorBlack
Net Weight0.20kg (0.44lbs)
Screw ModelM4x20mm
Fluorescence Bulb
8W Fluorescent Ring Light Bulb
Bulb Rated Power8W
Bulb Rated VoltageAC 220V 50Hz
Bulb ShapeRing
Bulb Inner Diameter Dia. 60mm
Bulb Outer Diameter Dia. 84mm
MaterialGlass
Net Weight0.024kg (0.053lbs)
Applied FieldFor ML461112 Fluorescence Ring Light
0.5X Coupler
Coupler Mount Type for TrinocularFastening Screw
Coupler Mount Size for Trinocular Dia. 38mm
Adjustable CouplerAdjustable
Coupler for Microscope TypeStereo Compatible
Coupler Magnification0.5X
C/CS-Mount CouplerC-Mount
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.10kg (0.22lbs)
Applied FieldFor SZ0502, SZ0503 Series Trinocular Zoom Body
2M HDMI Color Camera
Image SensorCMOS
Image Sensor Size1/2.86 in.
Image Sensor Diagonal size6.592mm (0.260 in. )
Camera Maximum Pixels2.0 Megapixels
Camera Resolution1920x1080
Camera Signal Output PortHDMI / USB 2.0
Camera Lens MountC-Mount
Transmission Frame Rate30fps@1920x1080
White BalanceManual/Auto
Gain ControlAdjustable
Exposure ControlManual
Image ComparisonYes
Image Freeze FunctionImage Freeze
Digital Zoom Function10X
Camera CrosshairsCross Line
Number of Crosshairs4 Movable Crosshairs
Line ColorUser Defined
Capture FunctionYes
Image Capture Output FormatBitmap
Video Output FormatAVI
LanguageEnglish
System RequirementWindows XP/7/8/10/11
Camera Housing MaterialMetal
Camera Housing Size83x74x53mm
Camera Housing ColorBlue
Memory TypeSD
Input VoltageDC 12V
Surface TreatmentElectroplating
Net Weight0.60kg (1.32lbs)
Camera Accessories
2M HDMI Color Camera
Mouse OperationYes
Memory TypeSD
Memory Capacity8G
TFT-LCD Monitor
11.6 in. Color Monitor
Screen Size11.6in
Screen Aspect Ratio16:9
Monitor Input Signal FormatHDMI
Monitor Max. Resolution1920x1080
Screen Active Area282x180mm (11.102x7.087 in. )
Screen Contrast1000:1
Screen Brightness450cd/m2
Response Time26ms
Screen Viewing AngleH: 80°/80° V: 80°/80°
Screen BacklightLCD Display
Monitor Operating Temperature10°C~40°C
Monitor Operating Humidity10%-80%
Monitor Housing MaterialPlastic
Monitor Housing Size280x180x15mm
Monitor Housing ColorBlack
Output Power12W
Input VoltageAC 100-240V 50/60Hz
Output VoltageDC 12V
Power Cord Connector TypeUSA 2 Pins
Power Cable Length1.5m
Net Weight0.42kg (0.93lbs)
Other Parameters
Surface TreatmentSpray Paint
ESD SafeESD Safe
MaterialMetal
ColorBlack
Net Weight17.80kg (39.24lbs)
Dimensions544x285x405mm (21.417x11.220x15.945 in. )
Series
SZ1904SZ02090453
Contains
Parts Including
PictureP/NProduct Name
SZ19041153ESD Trinocular Zoom Body
SA1902112276mm ESD E-Arm
ML46111211Fluorescence Ring Light (8W 110V ID55mm)
DC434111112M HDMI Color Camera
SZ05014911Ring Adapter
MO4321120111.6″ Color Monitor
SZ050361330.5X Coupler
ST19051431ESD Boom Stand
Product Instructions/Operation Manual1pc
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)39x24x36cm (15.354x9.449x14.173″)
Packaging Dimensions(2)51x43x18cm (20x17x7″)
Packaging Dimensions(3)29x16x18cm (11.417x6.299x7.087″)
Packaging Dimensions(4)18.5x10.8x5.2cm (7.283x4.251x2.047″)
Packaging Dimensions(5)28x23x7cm (11.024x9.055x2.756″)
Packaging Dimensions(6)33x24.5x9cm (12.992x9.646x3.543″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight21.19kg (46.72lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)39x24x36cm (15.354x9.449x14.173″)
Transportation Carton Dimensions(2)51x43x18cm (20x17x7″)
Transportation Carton Dimensions(3)29x16x18cm (11.417x6.299x7.087″)
Transportation Carton Dimensions(4)18.5x10.8x5.2cm (8x5x3″)
Transportation Carton Dimensions(5)28x23x7cm (11.024x9.055x2.756″)
Transportation Carton Dimensions(6)33x24.5x9cm (12.992x9.646x3.543″)
Total Gross Weight of Transportation(kilogram)21.19
Total Gross Weight of Transportation(pound)46.72
Quantity of One Transportation Carton6pc
Microscope Optical Data Sheet
P/N Objective Objective Working Distance Eyepiece
SZ05033211   (10X  Dia. 20mm) SZ19013211   (10X  Dia. 20mm) SZ19041153   (10X  Dia. 20mm)
Magnification Field of View(mm) Magnification Field of View(mm) Magnification Field of View(mm)
SZ19044211 0.5X 165mm 3.5-25X 8-57.14mm 3.5-25X 8-57.14mm 3.5-25X 8-57.14mm
SZ19044311 0.75X 117mm 5.25-37.5X 5.33-38.1mm 5.25-37.5X 5.33-38.1mm 5.25-37.5X 5.33-38.1mm
SZ19041153 1X 103mm 7-50X 4-28.57mm 7-50X 4-28.57mm 7-50X 4-28.57mm
SZ19044611 2X 30mm 14-100X 2-14.29mm 14-100X 2-14.29mm 14-100X 2-14.29mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /(Objective Optical Magnification*Body Magnification)
3. The Darker background items are Standard items, the white background items are optional items.
Video Microscope Optical Data Sheet
P/N Objective Coupler
SZ05036133  (0.5X) SZ19046131  (1X)
Magnification Magnification
SZ19044211 0.5X 0.18-1.25X 0.35-2.5X
SZ19044311 0.75X 0.26-1.88X 0.52-3.75X
SZ19041153 1X 0.35-2.5X 0.7-5X
SZ19044611 2X 0.7-5X 1.4-10X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification
Camera Image Sensor Specifications
No. Camera Image Sensor Size Camera image Sensor Diagonal
(mm) (inch)
1 1/4 in. 4mm 0.157"
2 1/3 in. 6mm 0.236"
3 1/2.8 in. 6.592mm 0.260"
4 1/2.86 in. 6.592mm 0.260"
5 1/2.7 in. 6.718mm 0.264"
6 1/2.5 in. 7.182mm 0.283"
7 1/2.3 in. 7.7mm 0.303"
8 1/2.33 in. 7.7mm 0.303"
9 1/2 in. 8mm 0.315"
10 1/1.9 in. 8.933mm 0.352"
11 1/1.8 in. 8.933mm 0.352"
12 1/1.7 in. 9.5mm 0.374"
13 2/3 in. 11mm 0.433"
14 1/1.2 in. 12.778mm 0.503"
15 1 in. 16mm 0.629"
16 1/1.1 in. 17.475mm 0.688"
Digital Magnification Data Sheet
Image Sensor Size Image Sensor Diagonal size Monitor
Screen Size (10in) Screen Size (11.6in) Screen Size (13.3in) Screen Size (21.5in)
Digital Zoom Function Digital Zoom Function Digital Zoom Function Digital Zoom Function
1/2.86 in. 6.592mm 38.5 44.7 51.2 82.8
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
Microscope Optical and Digital Magnifications Data Sheet
Objective Coupler Camera Monitor Video Microscope Optical Magnifications Digital Zoom Function Total Magnification Field of View (mm)
PN Magnification PN Magnification Image Sensor Size Image Sensor Diagonal size Screen Size
SZ19044211 0.5X SZ05036133 0.5X 1/2.86 in. 6.592mm 10in 0.18-1.25X 38.5 6.93-48.12X 5.27-36.62mm
SZ19044211 0.5X SZ05036133 0.5X 1/2.86 in. 6.592mm 11.6in 0.18-1.25X 44.7 8.05-55.88X 5.27-36.62mm
SZ19044211 0.5X SZ05036133 0.5X 1/2.86 in. 6.592mm 13.3in 0.18-1.25X 51.2 9.22-64X 5.27-36.62mm
SZ19044211 0.5X SZ05036133 0.5X 1/2.86 in. 6.592mm 21.5in 0.18-1.25X 82.8 14.9-103.5X 5.27-36.62mm
SZ19044211 0.5X SZ19046131 1X 1/2.86 in. 6.592mm 10in 0.35-2.5X 38.5 13.48-96.25X 2.64-18.83mm
SZ19044211 0.5X SZ19046131 1X 1/2.86 in. 6.592mm 11.6in 0.35-2.5X 44.7 15.64-111.75X 2.64-18.83mm
SZ19044211 0.5X SZ19046131 1X 1/2.86 in. 6.592mm 13.3in 0.35-2.5X 51.2 17.92-128X 2.64-18.83mm
SZ19044211 0.5X SZ19046131 1X 1/2.86 in. 6.592mm 21.5in 0.35-2.5X 82.8 28.98-207X 2.64-18.83mm
SZ19044311 0.75X SZ05036133 0.5X 1/2.86 in. 6.592mm 10in 0.26-1.88X 38.5 10.01-72.38X 3.51-25.35mm
SZ19044311 0.75X SZ05036133 0.5X 1/2.86 in. 6.592mm 11.6in 0.26-1.88X 44.7 11.62-84.04X 3.51-25.35mm
SZ19044311 0.75X SZ05036133 0.5X 1/2.86 in. 6.592mm 13.3in 0.26-1.88X 51.2 13.31-96.26X 3.51-25.35mm
SZ19044311 0.75X SZ05036133 0.5X 1/2.86 in. 6.592mm 21.5in 0.26-1.88X 82.8 21.53-155.66X 3.51-25.35mm
SZ19044311 0.75X SZ19046131 1X 1/2.86 in. 6.592mm 10in 0.52-3.75X 38.5 20.02-144.38X 1.76-12.68mm
SZ19044311 0.75X SZ19046131 1X 1/2.86 in. 6.592mm 11.6in 0.52-3.75X 44.7 23.24-167.62X 1.76-12.68mm
SZ19044311 0.75X SZ19046131 1X 1/2.86 in. 6.592mm 13.3in 0.52-3.75X 51.2 26.62-192X 1.76-12.68mm
SZ19044311 0.75X SZ19046131 1X 1/2.86 in. 6.592mm 21.5in 0.52-3.75X 82.8 43.06-310.5X 1.76-12.68mm
SZ19041153 1X SZ05036133 0.5X 1/2.86 in. 6.592mm 10in 0.35-2.5X 38.5 13.48-96.25X 2.64-18.83mm
SZ19041153 1X SZ05036133 0.5X 1/2.86 in. 6.592mm 11.6in 0.35-2.5X 44.7 15.64-111.75X 2.64-18.83mm
SZ19041153 1X SZ05036133 0.5X 1/2.86 in. 6.592mm 13.3in 0.35-2.5X 51.2 17.92-128X 2.64-18.83mm
SZ19041153 1X SZ05036133 0.5X 1/2.86 in. 6.592mm 21.5in 0.35-2.5X 82.8 28.98-207X 2.64-18.83mm
SZ19041153 1X SZ19046131 1X 1/2.86 in. 6.592mm 10in 0.7-5X 38.5 26.95-192.5X 1.32-9.42mm
SZ19041153 1X SZ19046131 1X 1/2.86 in. 6.592mm 11.6in 0.7-5X 44.7 31.29-223.5X 1.32-9.42mm
SZ19041153 1X SZ19046131 1X 1/2.86 in. 6.592mm 13.3in 0.7-5X 51.2 35.84-256X 1.32-9.42mm
SZ19041153 1X SZ19046131 1X 1/2.86 in. 6.592mm 21.5in 0.7-5X 82.8 57.96-414X 1.32-9.42mm
SZ19044611 2X SZ05036133 0.5X 1/2.86 in. 6.592mm 10in 0.7-5X 38.5 26.95-192.5X 1.32-9.42mm
SZ19044611 2X SZ05036133 0.5X 1/2.86 in. 6.592mm 11.6in 0.7-5X 44.7 31.29-223.5X 1.32-9.42mm
SZ19044611 2X SZ05036133 0.5X 1/2.86 in. 6.592mm 13.3in 0.7-5X 51.2 35.84-256X 1.32-9.42mm
SZ19044611 2X SZ05036133 0.5X 1/2.86 in. 6.592mm 21.5in 0.7-5X 82.8 57.96-414X 1.32-9.42mm
SZ19044611 2X SZ19046131 1X 1/2.86 in. 6.592mm 10in 1.4-10X 38.5 53.9-385X 0.66-4.71mm
SZ19044611 2X SZ19046131 1X 1/2.86 in. 6.592mm 11.6in 1.4-10X 44.7 62.58-447X 0.66-4.71mm
SZ19044611 2X SZ19046131 1X 1/2.86 in. 6.592mm 13.3in 1.4-10X 51.2 71.68-512X 0.66-4.71mm
SZ19044611 2X SZ19046131 1X 1/2.86 in. 6.592mm 21.5in 1.4-10X 82.8 115.92-828X 0.66-4.71mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

Recently viewed products
