Product Description
Condition: New
Technical Specifications

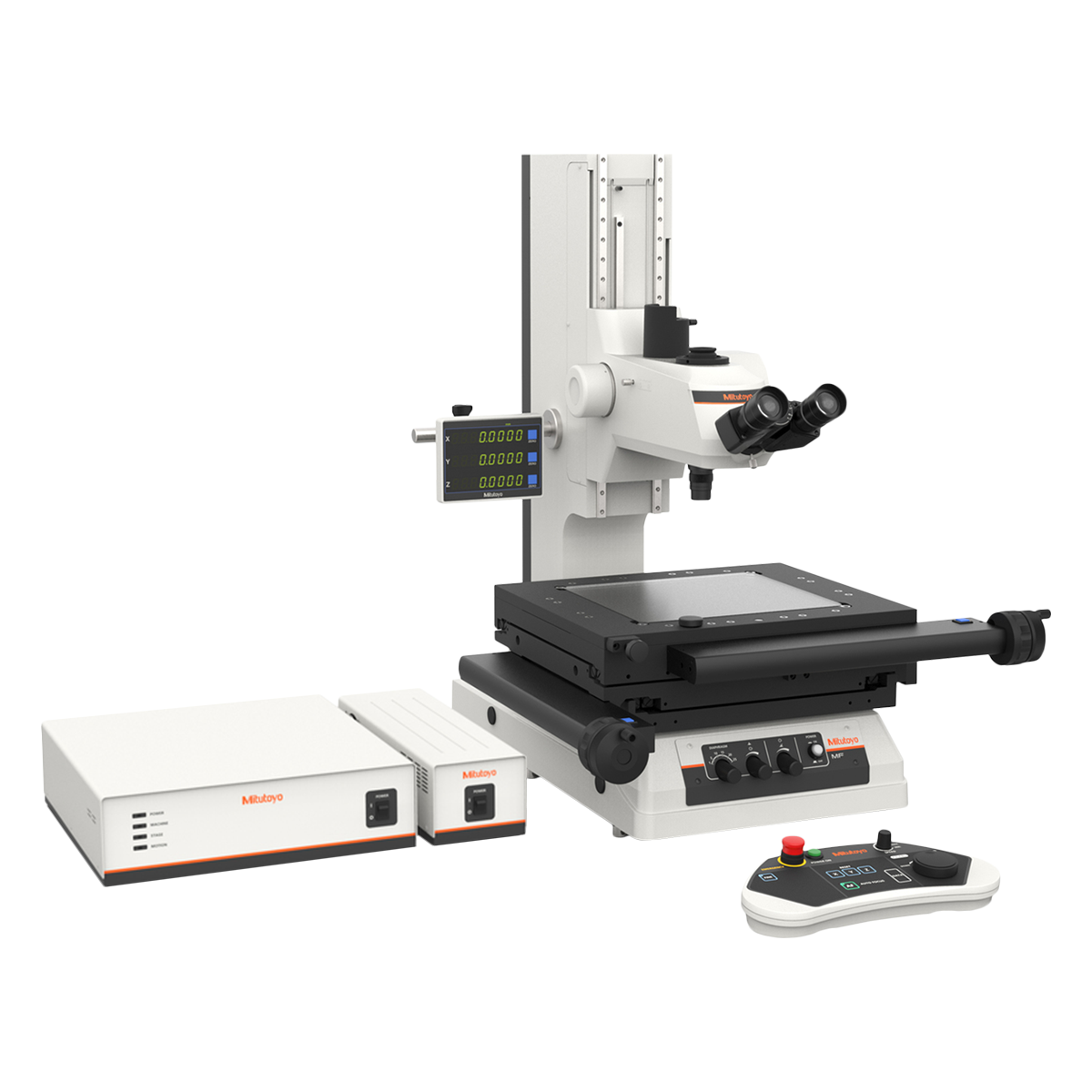

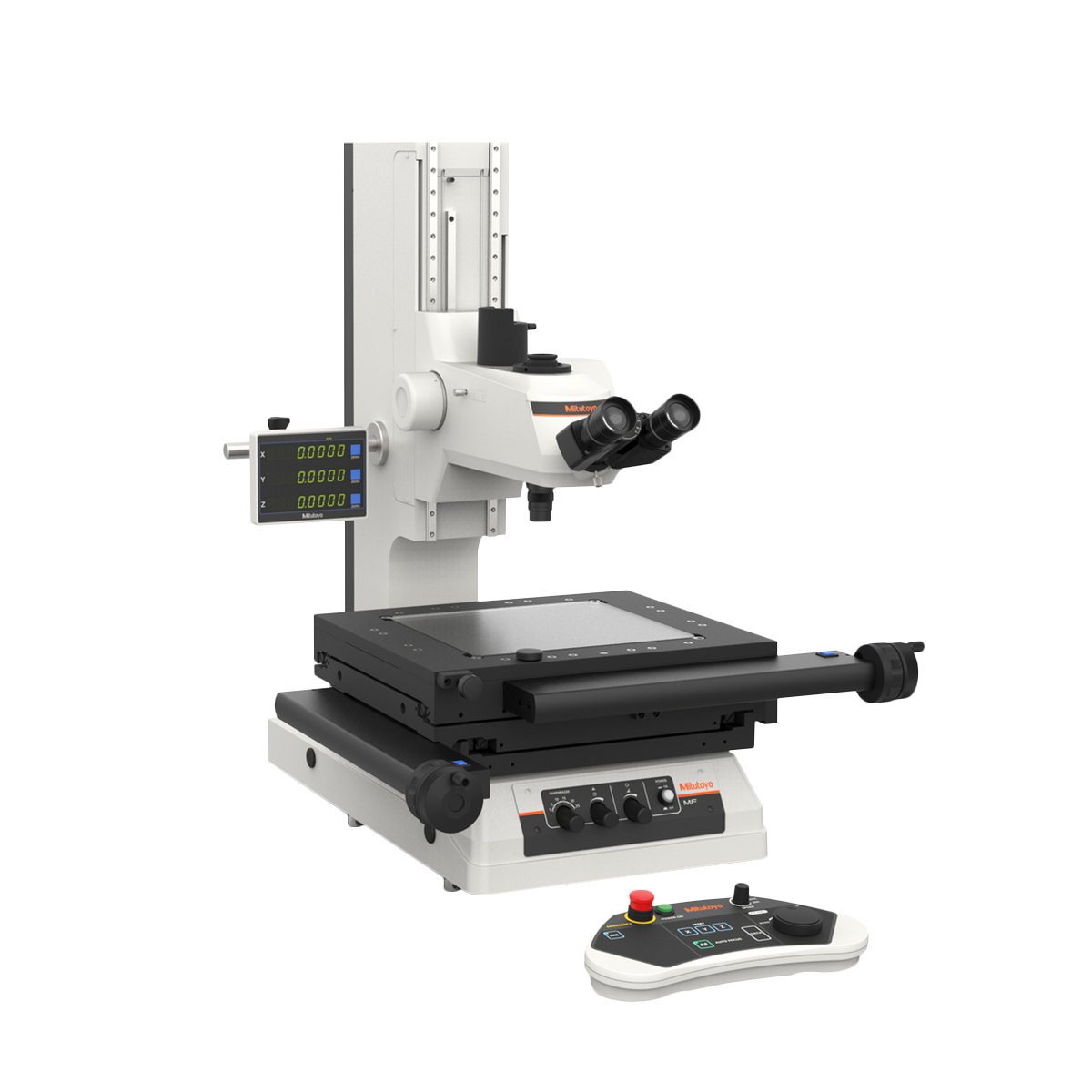

Mitutoyo-176-893-13 Measuring Microscope (Motor-Driven Z-Axis Models)
Optical System Specifications
Optical SystemFinite
System Optical Magnification30X
Expandable System Optical Magnification (Optional Parts Required)10-2000X
Total Magnification30X
Standard Objective3X Objective
System Field of View Dia. 8mm
Expandable System Field of View Dia. 0.12-24mm
System Working Distance77mm
Expandable System Working Distance6-77mm
Compound Trinocular Head
Eye Tube Optical SystemFinite
Eye Tube TypeFor Compound Microscope
Eye Tube Adjustment ModeSiedentopf
Eye Tube Angle25°
Erect/Inverted ImageErect image
Image Port Switch Mode50/50 True-Trinocular
Eyepiece
Eyepiece Optical Magnification10X
Eyepiece Field of View Dia. 24mm
Telecentric Objective Lens
3X Objective
Objective Optical SystemFinite
Objective Optical Magnification3X
Objective Working Distance77mm
Numerical Aperture (N.A.)N.A. 0.09
Objective Resolution3.06μm
Objective Immersion MediaDry Objective
Applied FieldFor Mitutoyo MF Microscopes
Microscope Stand
Focus ModeManual
Coarse Focus Distance per Rotation30mm
Fine Focus Distance per Rotation0.2mm

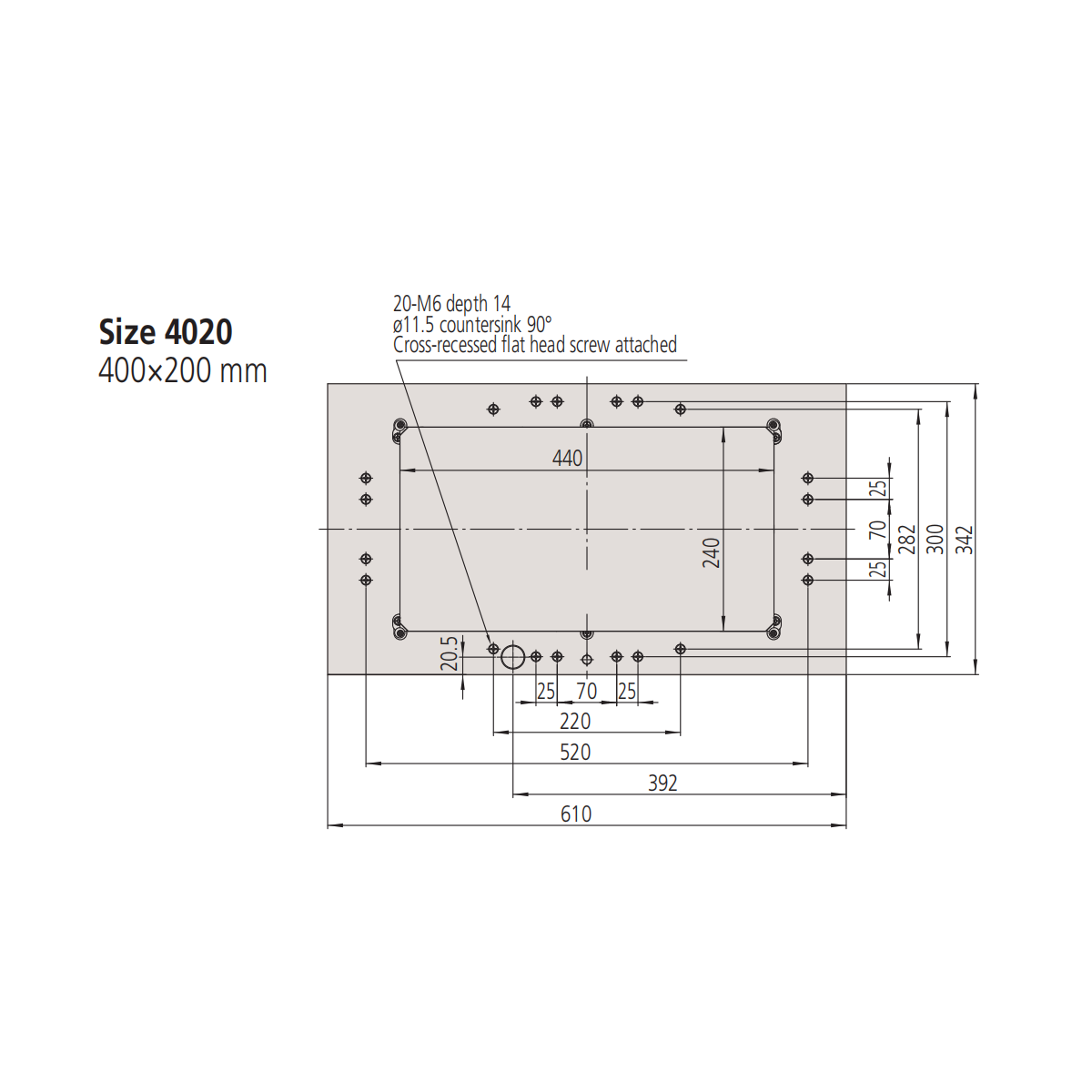

XY Stage Travel Distance400x200mm
Z-Axis Drive ModeMotorized
XY-Axis Drive ModeManual
Stage Z-Axis Position LimitWith Position Limit
Stage Fast MovementYes
XY-Axis Measurement ModeBuilt-in Encoder
XY-Axis ResolutionHigh Accuracy Digital Scale is Mounted, 1/0.5/0.1 μm Switchable
XY-Axis Measurement Accuracy (2.2+0.02L) μm, L: Measuring Length (mm)
Stage Maximum Load15.00kg (33.06lbs)
Motor SpeedMaximum Measuring Speed: 20 mm/s)
Controller Operation TypeRemote Control
Microscope Illuminator
Illumination TypeLED Dual Illuminated Light
Power Supply
Output Power45W
Input VoltageAC 100-240V 50/60Hz
Other Parameters
Output PortRS-232C for external PC control
ColorBlack, White
Net Weight175kg (386lbs)

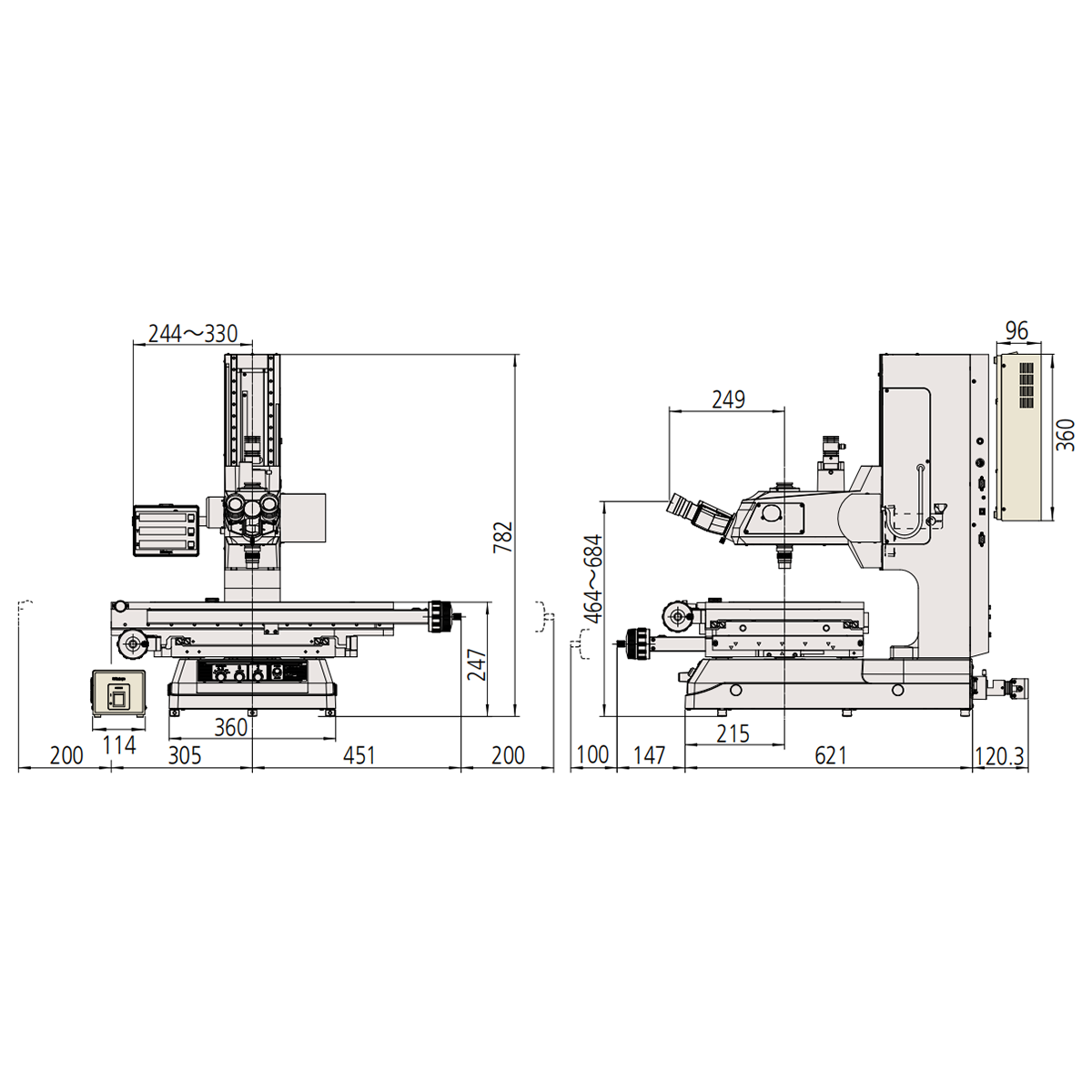

Dimensions756x892x782mm (29.764x35.118x30.787 in. )
NotesThis Product Does Not Include Binocular Tube, Eyepiece, Illumination
Warranty

5/1 Years

Certification
Contains
Parts Including
PictureP/NProduct Name
Mitutoyo-375-037-13X Objective

Microscope Optical Data Sheet
P/N Objective Objective Working Distance Eyepiece
Mitutoyo-176-392   (10X  Dia. 24mm) Mitutoyo-176-393   (10X  Dia. 24mm) Mitutoyo-375-043   (10X  Dia. 21mm) Mitutoyo-176-313   (10X  Dia. 22mm)
Magnification Field of View(mm) Magnification Field of View(mm) Magnification Field of View(mm) Magnification Field of View(mm)
Mitutoyo-375-036-2 1X 61mm 10X 24mm 10X 24mm 10X 21mm 10X 22mm
Mitutoyo-375-037-1 3X 77mm 30X 8mm 30X 8mm 30X 7mm 30X 7.33mm
Mitutoyo-375-034-1 5X 61mm 50X 4.8mm 50X 4.8mm 50X 4.2mm 50X 4.4mm
Mitutoyo-375-039 10X 51mm 100X 2.4mm 100X 2.4mm 100X 2.1mm 100X 2.2mm
Mitutoyo-375-051 20X 20mm 200X 1.2mm 200X 1.2mm 200X 1.05mm 200X 1.1mm
Mitutoyo-375-052 50X 13mm 500X 0.48mm 500X 0.48mm 500X 0.42mm 500X 0.44mm
Mitutoyo-375-053 100X 6mm 1000X 0.24mm 1000X 0.24mm 1000X 0.21mm 1000X 0.22mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /(Objective Optical Magnification*Body Magnification)
3. The Darker background items are Standard items, the white background items are optional items.
Video Microscope Optical Data Sheet
P/N Objective Coupler
Mitutoyo-375-054  (0.5X)
Magnification
Mitutoyo-375-036-2 1X 0.5X
Mitutoyo-375-037-1 3X 1.5X
Mitutoyo-375-034-1 5X 2.5X
Mitutoyo-375-039 10X 5X
Mitutoyo-375-051 20X 10X
Mitutoyo-375-052 50X 25X
Mitutoyo-375-053 100X 50X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification
Camera Image Sensor Specifications
No. Camera Image Sensor Size Camera image Sensor Diagonal
(mm) (inch)
1 1/4 in. 4mm 0.157"
2 1/3 in. 6mm 0.236"
3 1/2.8 in. 6.592mm 0.260"
4 1/2.86 in. 6.592mm 0.260"
5 1/2.7 in. 6.718mm 0.264"
6 1/2.5 in. 7.182mm 0.283"
7 1/2.3 in. 7.7mm 0.303"
8 1/2.33 in. 7.7mm 0.303"
9 1/2 in. 8mm 0.315"
10 1/1.9 in. 8.933mm 0.352"
11 1/1.8 in. 8.933mm 0.352"
12 1/1.7 in. 9.5mm 0.374"
13 2/3 in. 11mm 0.433"
14 1/1.2 in. 12.778mm 0.503"
15 1 in. 16mm 0.629"
16 1/1.1 in. 17.475mm 0.688"
Digital Magnification Data Sheet
Image Sensor Size Image Sensor Diagonal size Monitor
Screen Size (24in)
Digital Zoom Function
1/3 in. 6mm 101.6
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
Microscope Optical and Digital Magnifications Data Sheet
Objective Coupler Camera Monitor Video Microscope Optical Magnifications Digital Zoom Function Total Magnification Field of View (mm)
PN Magnification PN Magnification Image Sensor Size Image Sensor Diagonal size Screen Size
Mitutoyo-375-036-2 1X Mitutoyo-375-054 0.5X 1/3 in. 6mm 24in 0.5X 101.6 50.8X 12mm
Mitutoyo-375-037-1 3X Mitutoyo-375-054 0.5X 1/3 in. 6mm 24in 1.5X 101.6 152.4X 4mm
Mitutoyo-375-034-1 5X Mitutoyo-375-054 0.5X 1/3 in. 6mm 24in 2.5X 101.6 254X 2.4mm
Mitutoyo-375-039 10X Mitutoyo-375-054 0.5X 1/3 in. 6mm 24in 5X 101.6 508X 1.2mm
Mitutoyo-375-051 20X Mitutoyo-375-054 0.5X 1/3 in. 6mm 24in 10X 101.6 1016X 0.6mm
Mitutoyo-375-052 50X Mitutoyo-375-054 0.5X 1/3 in. 6mm 24in 25X 101.6 2540X 0.24mm
Mitutoyo-375-053 100X Mitutoyo-375-054 0.5X 1/3 in. 6mm 24in 50X 101.6 5080X 0.12mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications
