Product Description
Condition: New
Technical Specifications

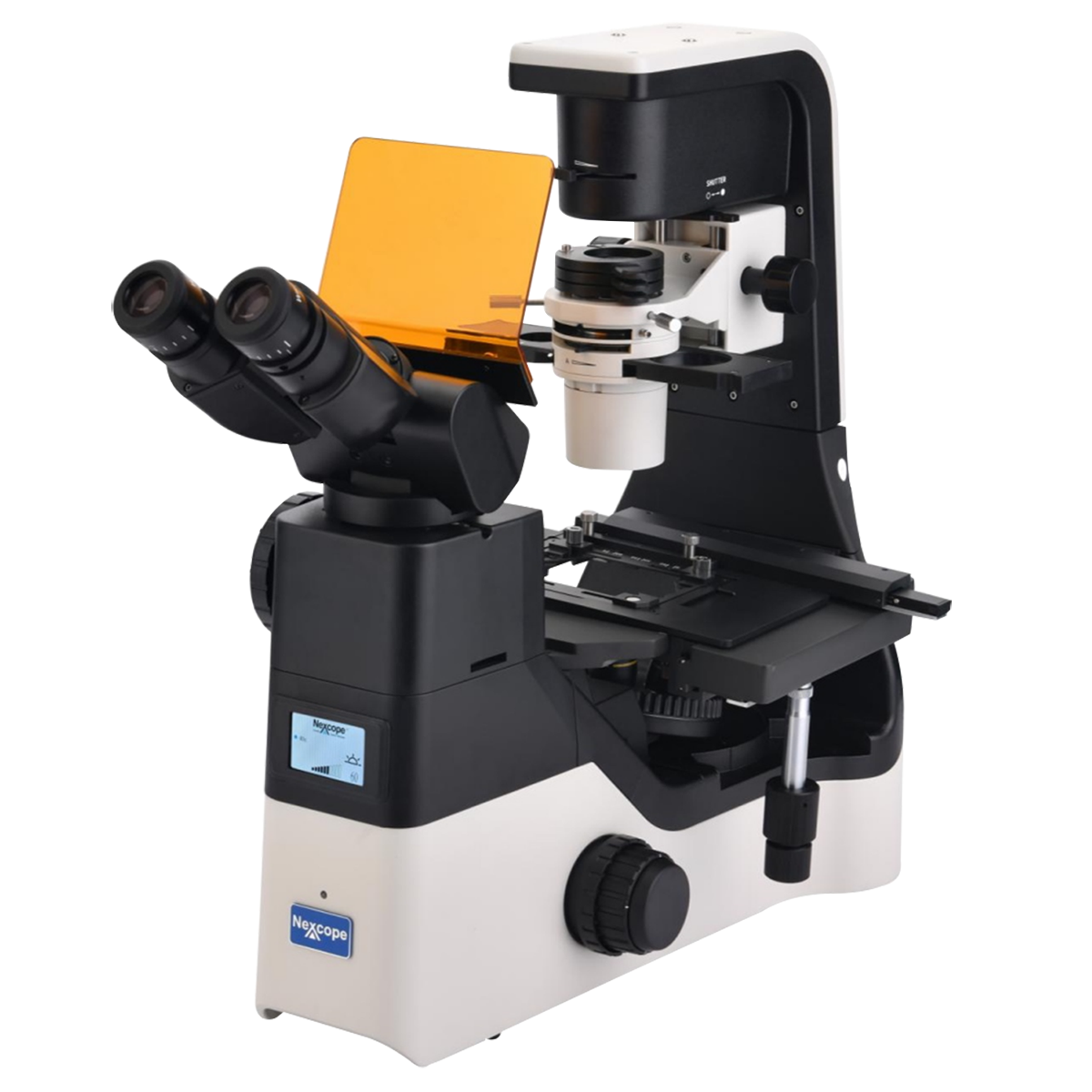

Nexcope-NIB630FL-Trinocular Trinocular Inverted Fluorescence Microscope
Optical System Specifications
Optical SystemInfinite
System Optical Magnification40-400X
Total Magnification40-400X
Standard Eyepiece10X Adjustable Eyepiece
Standard Objective4X 10X 20X 40X Infinity Plan Semi-Apochromatic Fluorescence Objective
System Field of View Dia. 0.55-5.5mm
System Working Distance3.6-30mm
Upright / InvertedInverted
Compound Trinocular Head
Eye Tube Optical SystemInfinite
Eye Tube TypeFor Compound Microscope
Eye Tube Adjustment ModeSiedentopf
Eye Tube Angle5-35°
Erect/Inverted ImageInverted Image
Eye Tube Rotatable360° Degree Rotatable
Interpupillary Adjustment48-75mm
Eye Tube Inner Diameter Dia. 30mm
Eye Tube Fixing ModeElastic Tube locking
Image Port Switch Mode0/100 Switch Trinocular
Eyepiece
10X Adjustable Eyepiece (Pair Dia. 30/FN22)
Eyepiece TypeAdjustable Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 30mm
Eyepiece Field of View Dia. 22mm
Eyepoint TypeHigh Eyepoint Eyepiece
Eyepiece Size for Reticle Dia. 27mm
Eyepiece Diopter Correction±5°
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.17kg (0.37lbs)
Encoded Nosepiece
Inward/Outward NosepieceNosepiece Outward
Number of Holes on NosepieceQuintuple (5) Holes
Nosepiece Switch ModeManual
Nosepiece Screw Thread for ObjectiveM25x0.75mm
Microscope Stand
Base TypeIllumination Base
Base ShapeT-shape
Focus ModeManual
Coarse/Fine Focus TypeCoaxial Coarse/Fine Focus
Fine Focus Travel DistanceSame as Focus Distance
Focusing Knob Tightness AdjustableTightness Adjustable
Microscope Stage
Stage Platform Dimensions170x250mm
Stage Backlight Window Size Dia. 110mm
Mounting Holes Position120mm
Mounting Hole DimensionsM4
XY Stage Travel Distance128x80mm
Stage Knob with ScaleWith Scale
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight1.16kg (2.56lbs)
Multifunctional Plate Size128x86mm 83x56mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.05kg (0.11lbs)
Dimensions128x86x3mm (5.039x3.386x0.118 in. )
Thickness3mm
Applied FieldFor Nexcope-NIB600 Series Microscope
Microscope Illuminator
Illumination TypeLED Coaxial Transmitted Light
Transmission Light Source TypeLED
Fluorescence Lamp House Light Source TypeLED
Excitation Filter TypeB G U
Exciting Filter Cube3 Pieces
Brightness And Luminance Memory FunctionWith Brightness And Luminance Memory Function
Screen BacklightLCD Display
Monitor Display FunctionOperation/Lock/Auto Sleep/Standby
Phase Plate
Annular Phase Plate HolesTriple holes
Objective Magnification of Phase Plate 10-20X 40X Phase Plate
Surface TreatmentElectroplating Black
MaterialPlastic
ColorBlack
Net Weight0.04kg (0.09lbs)
0.5X Coupler
Coupler Mount Type for TrinocularFastening Screw
Coupler Mount Size for Trinocular Dia. 23.2mm
Coupler for Microscope TypeCompound Compatible
Coupler Magnification0.5X
C/CS-Mount CouplerC-Mount
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.04kg (0.09lbs)
Applied FieldFor BM04010301 Trinocular Biological Microscope
Power Supply
Output Power3W
Input VoltageAC 100-240V 50/60Hz
Power Cord Connector TypeUSA 3 Pins
Power Cable Length1.8m
Environment Requirement
Operating Temperature5~40℃ (41~104℉)
Operating Humidity80%
Other Parameters
Surface TreatmentPlastic Spray Coating
MaterialMetal
ColorBlack, White
Dimensions244x543x526mm (9.606x21.378x20.709 in. )
Series
NIB600Nexcope-NIB630FL-Trinocular
Warranty

5/1 Years

Certification
Contains
Parts Including
PictureP/NProduct Name
Nexcope-NIB610-Objective-S-APO-FL2020X Infinity Plan Semi Apochromatic Fluorescence Objective
Nexcope-NIB610-Objective-S-APO-FL44X Infinity Plan Semi Apochromatic Fluorescence Objective
Nexcope-NIB610-Objective-S-APO-FL4040X Infinity Plan Semi Apochromatic Fluorescence Objective
Nexcope-NIB610-Objective-S-APO-FL1010X Infinity Plan Semi Apochromatic Fluorescence Objective
Nexcope-NE620-Eyepiece-1010X Adjustable Eyepiece (Pair Φ30/FN22)
Nexcope-NIB610-Coupler-0.50.5X Coupler
Nexcope-NIB610-Phase PlatePhase Plate
Nexcope-NIB610-Mechanical StageMechanical Stage
Nexcope-NIB610-Multifunctional Slit Plate-1Multifunctional Slit Plate
Desiccant Bag1 Bag
Allen KeyM1.5 1pc M2 1pc M2.5 1pc
Dust Cover1pc
Fuse2pc
Product Instructions/Operation Manual1pc
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)68x38x64cm (26.772x14.961x25.197″)
Packaging Dimensions(2)47x36x37cm (18.504x14.173x14.567″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)68x38x64cm (26.772x14.961x25.197″)
Transportation Carton Dimensions(2)47x36x37cm (18.504x14.173x14.567″)
Total Gross Weight of Transportation(kilogram)23.85
Total Gross Weight of Transportation(pound)52.58
Quantity of One Transportation Carton2pc
Camera Image Sensor Specifications
No. Camera Image Sensor Size Camera image Sensor Diagonal
(mm) (inch)
1 1/4 in. 4mm 0.157"
2 1/3 in. 6mm 0.236"
3 1/2.8 in. 6.592mm 0.260"
4 1/2.86 in. 6.592mm 0.260"
5 1/2.7 in. 6.718mm 0.264"
6 1/2.5 in. 7.182mm 0.283"
7 1/2.3 in. 7.7mm 0.303"
8 1/2.33 in. 7.7mm 0.303"
9 1/2 in. 8mm 0.315"
10 1/1.9 in. 8.933mm 0.352"
11 1/1.8 in. 8.933mm 0.352"
12 1/1.7 in. 9.5mm 0.374"
13 2/3 in. 11mm 0.433"
14 1/1.2 in. 12.778mm 0.503"
15 1 in. 16mm 0.629"
16 1/1.1 in. 17.475mm 0.688"
Digital Magnification Data Sheet
Image Sensor Size Image Sensor Diagonal size Monitor
Screen Size (24in)
Digital Zoom Function
1/3 in. 6mm 101.6
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
