Product Description
Technical Specifications

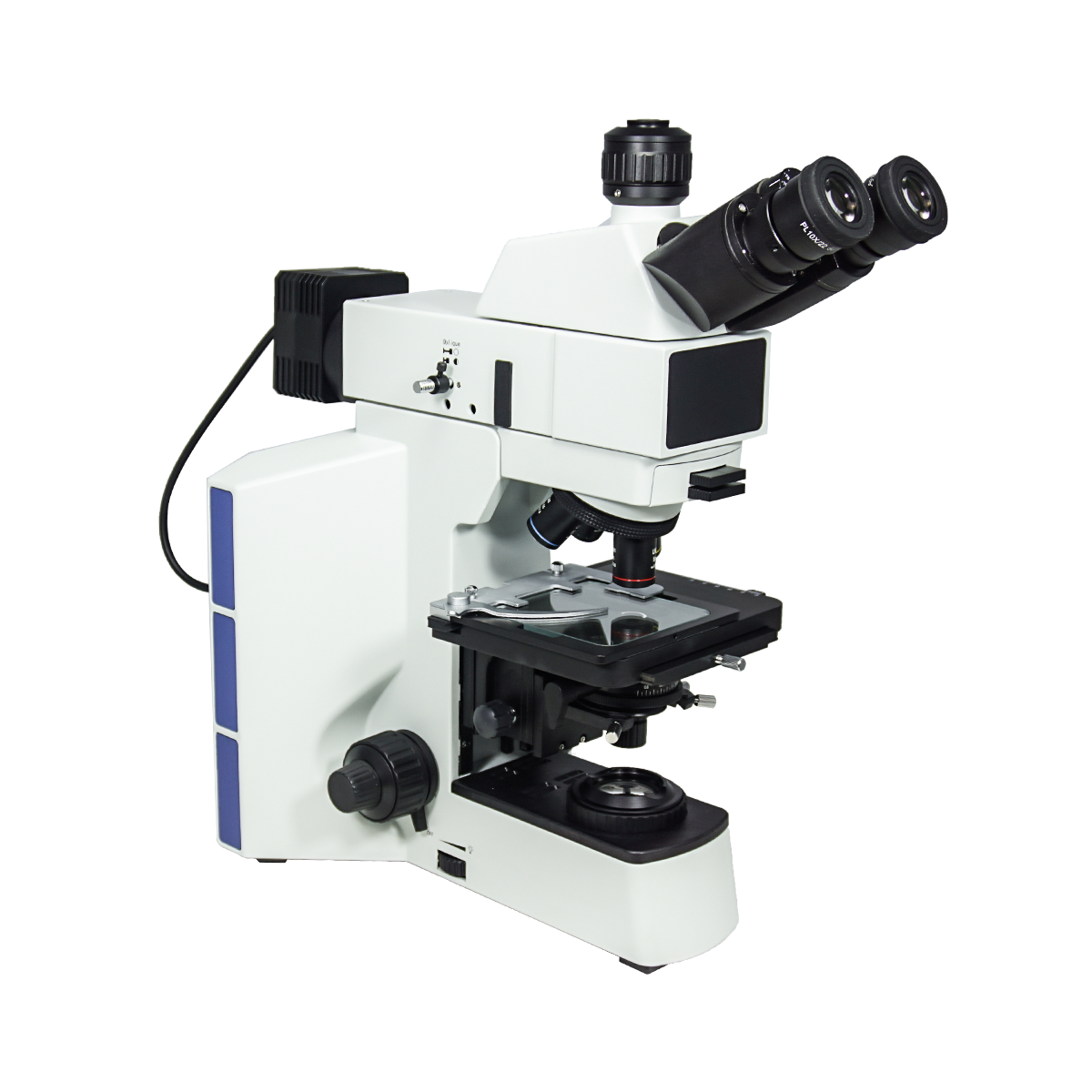

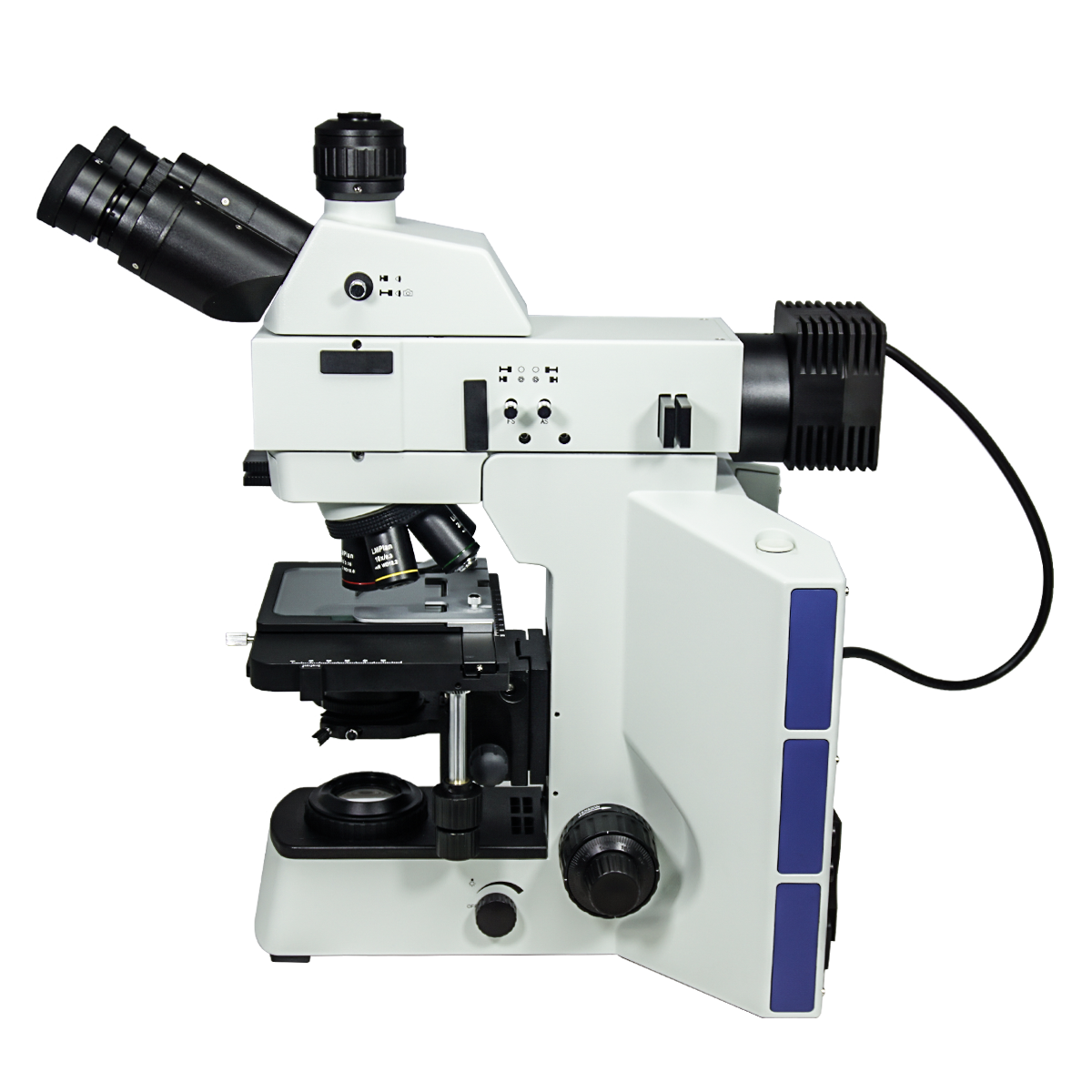

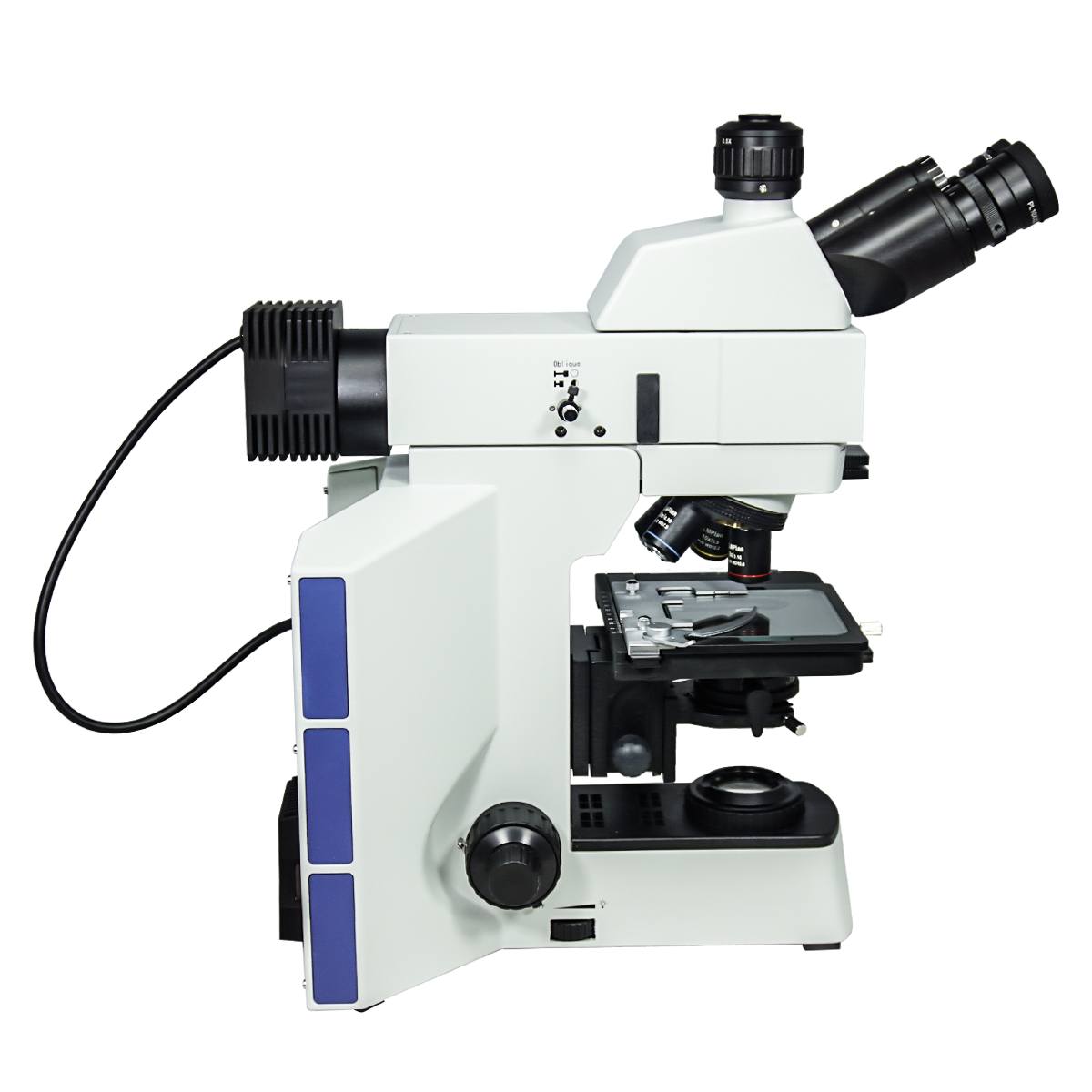

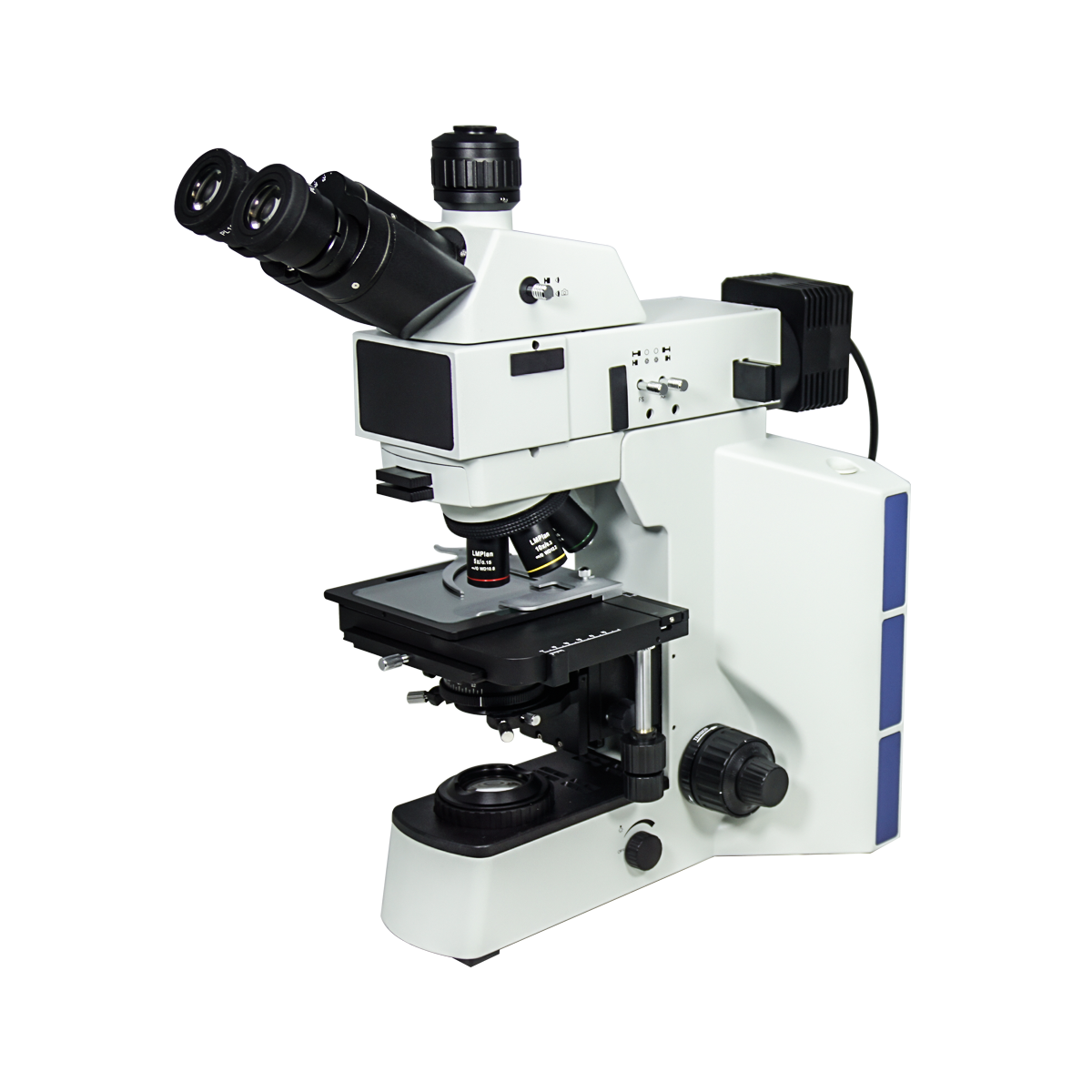

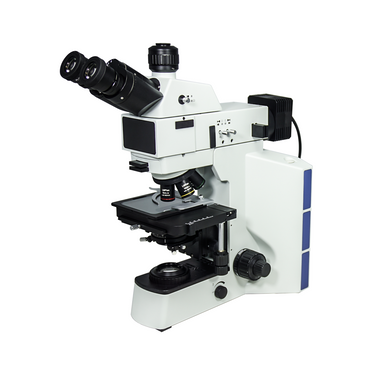

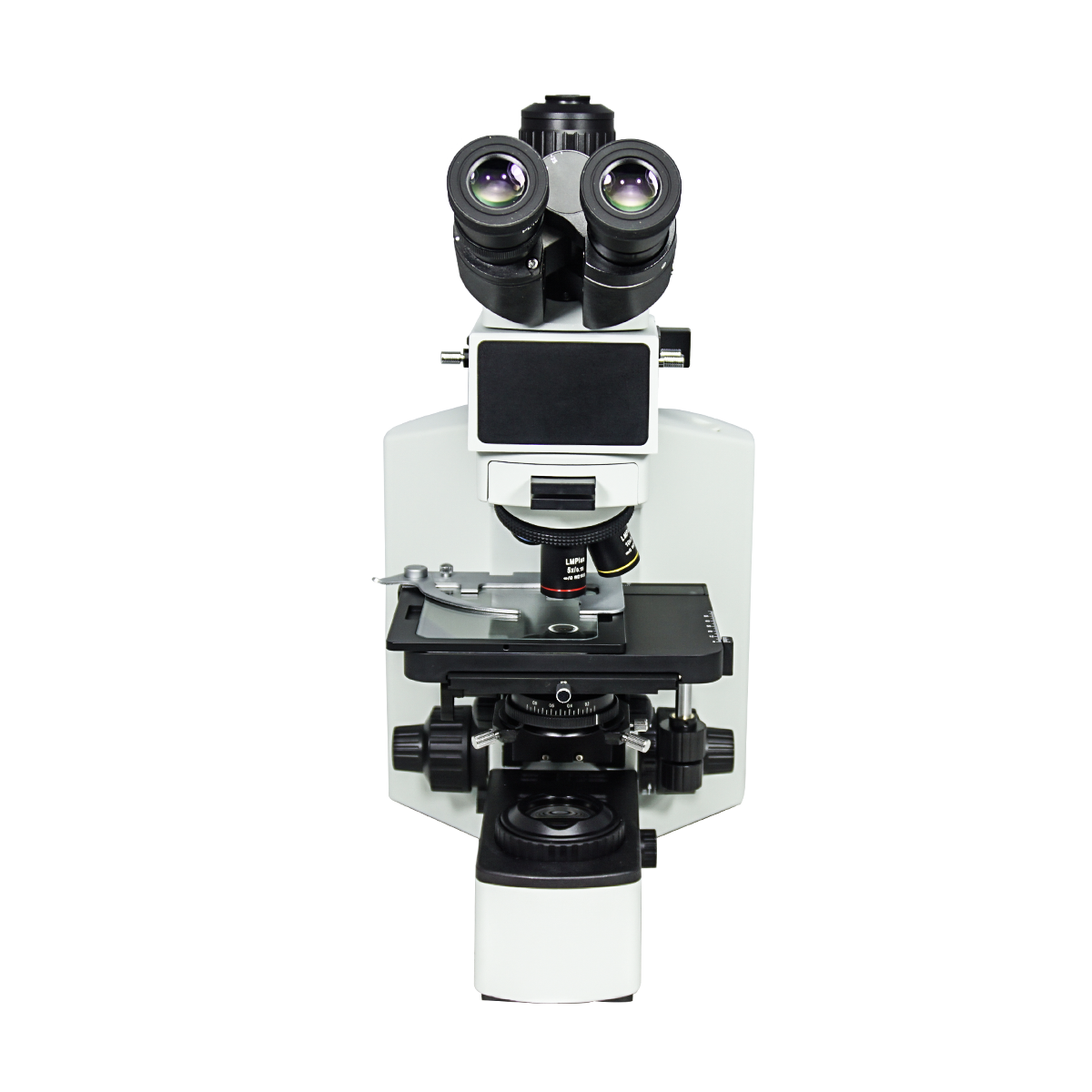

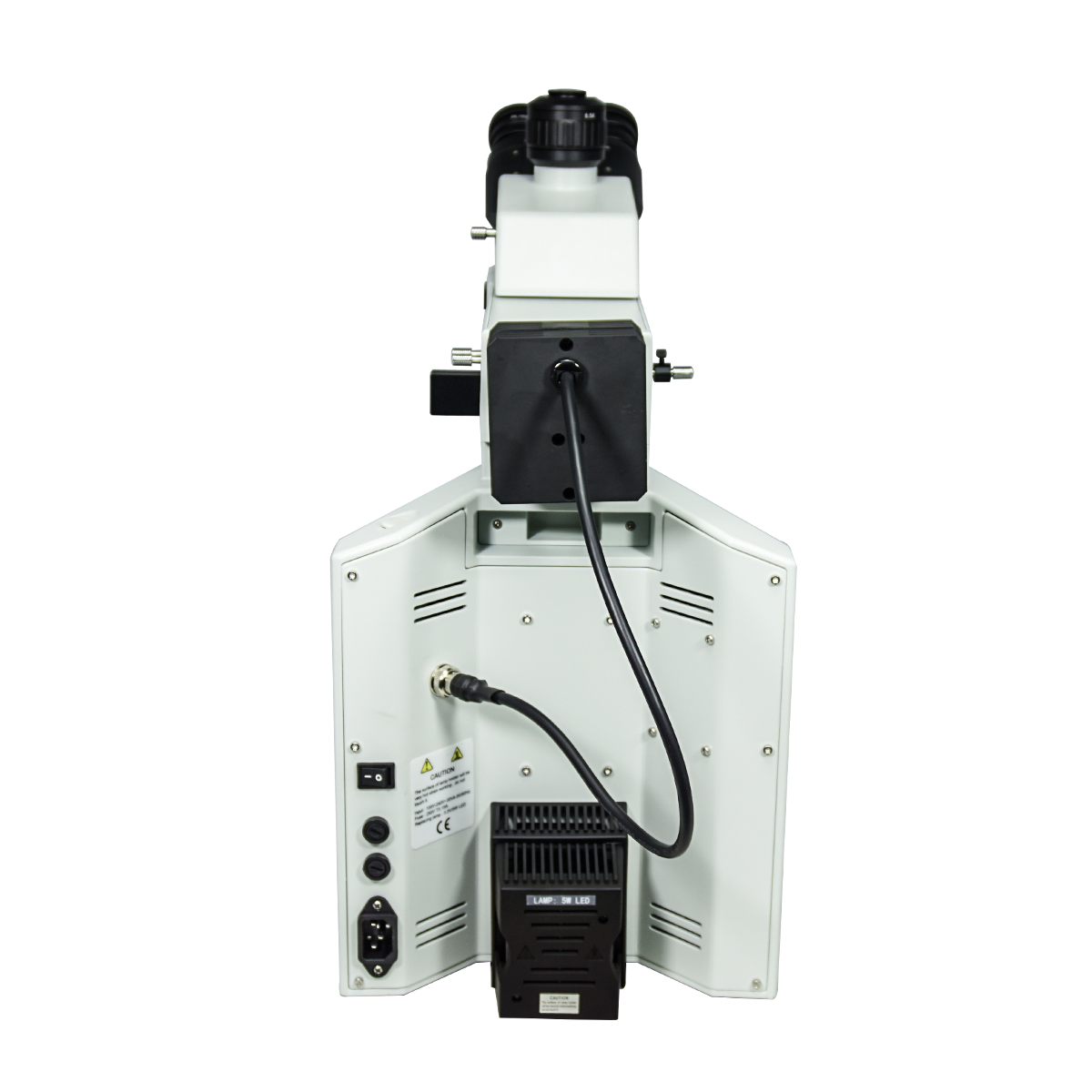

MT05110313 Trinocular Transmitted/Reflected Metallurgical Microscope
Optical System Specifications
Optical SystemInfinite
System Optical Magnification50-1000X
Trinocular Optical Magnification2.5-50X
Total Magnification50-1000X
Standard Eyepiece10X High Eyepoint Eyepiece
Standard Objective5X 10X 20X 50X 100X Infinity Long Working Distance Plan Achromatic Metallurgical Objective
Standard Coupler0.5X
System Field of View Dia. 0.22-4.4mm
System Working Distance2.1-12.2mm
Compound Trinocular Head
Eye Tube Optical SystemInfinite
Eye Tube TypeFor Compound Microscope
Eye Tube Adjustment ModeSiedentopf
Eye Tube Angle30°
Erect/Inverted ImageInverted Image
Eye Tube Rotatable360° Degree Rotatable
Interpupillary Adjustment54-75mm
Eye Tube Inner Diameter Dia. 30mm
Eye Tube Diopter AdjustableLeft ±5°, Right Not Adjustable
Eye Tube Size for Scope Body/Carrier Dia. 46mm
Image Port Switch Mode50/50 True-Trinocular
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight1.30kg (2.866lbs)
Eyepiece
10X High Eyepoint Eyepiece (Pair Dia. 30/FN22)
Eyepiece TypeStandard Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 30mm
Eyepiece Field of View Dia. 22mm
Eyepoint TypeHigh Eyepoint Eyepiece
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.23kg (0.51lbs)

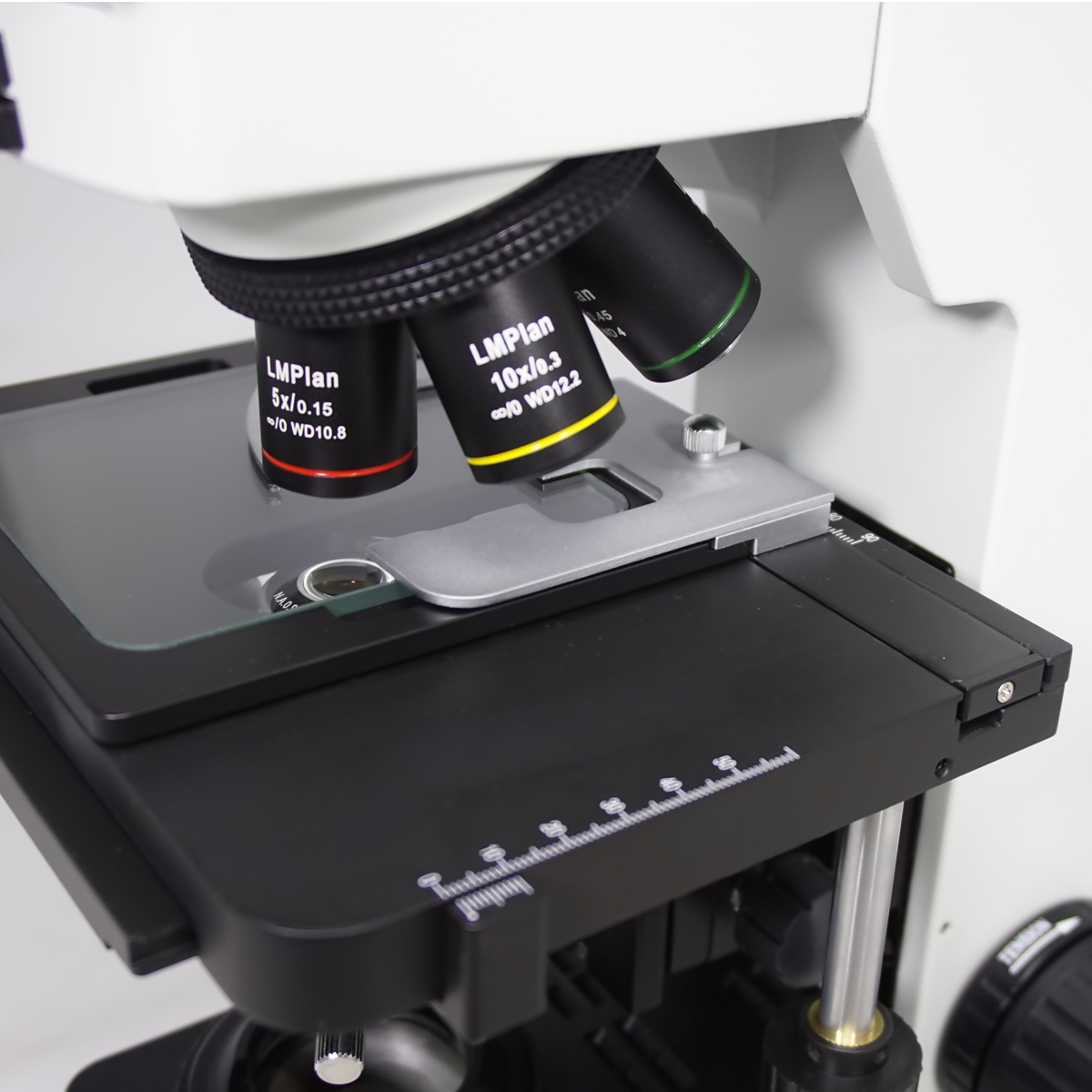

Metallurgical Objective
5X Infinity Long Working Distance Plan Achromatic Metallurgical Objective
Objective Optical SystemInfinite
Objective Optical Magnification5X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length180mm
Objective Working Distance10.8mm
Numerical Aperture (N.A.)N.A. 0.15
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 26mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.06kg (0.13lbs)
Applied FieldMT0512 Series Microscope
10X Infinity Long Working Distance Plan Achromatic Metallurgical Objective
Objective Optical SystemInfinite
Objective Optical Magnification10X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length180mm
Objective Working Distance12.2mm
Numerical Aperture (N.A.)N.A. 0.30
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 26mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.08kg (0.18lbs)
Applied FieldMT0512 Series Microscope
20X Infinity Long Working Distance Plan Achromatic Metallurgical Objective
Objective Optical SystemInfinite
Objective Optical Magnification20X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length180mm
Objective Working Distance4mm
Numerical Aperture (N.A.)N.A. 0.45
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 26mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Applied FieldMT0512 Series Microscope
50X Infinity Long Working Distance Plan Achromatic Metallurgical Objective
Objective Optical SystemInfinite
Objective Optical Magnification50X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length180mm
Objective Working Distance7.9mm
Numerical Aperture (N.A.)N.A. 0.55
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 26mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Applied FieldMT0512 Series Microscope
100X Infinity Long Working Distance Plan Achromatic Metallurgical Objective
Objective Optical SystemInfinite
Objective Optical Magnification100X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length180mm
Objective Working Distance2.1mm
Numerical Aperture (N.A.)N.A. 0.80
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 26mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.10kg (0.22lbs)
Applied FieldMT0512 Series Microscope
Nosepiece
Inward/Outward NosepieceNosepiece Inward
Number of Holes on NosepieceQuintuple (5) Holes
Nosepiece Switch ModeManual
Nosepiece Screw Thread for ObjectiveRMS Standard (4/5 in. x1/36 in. )

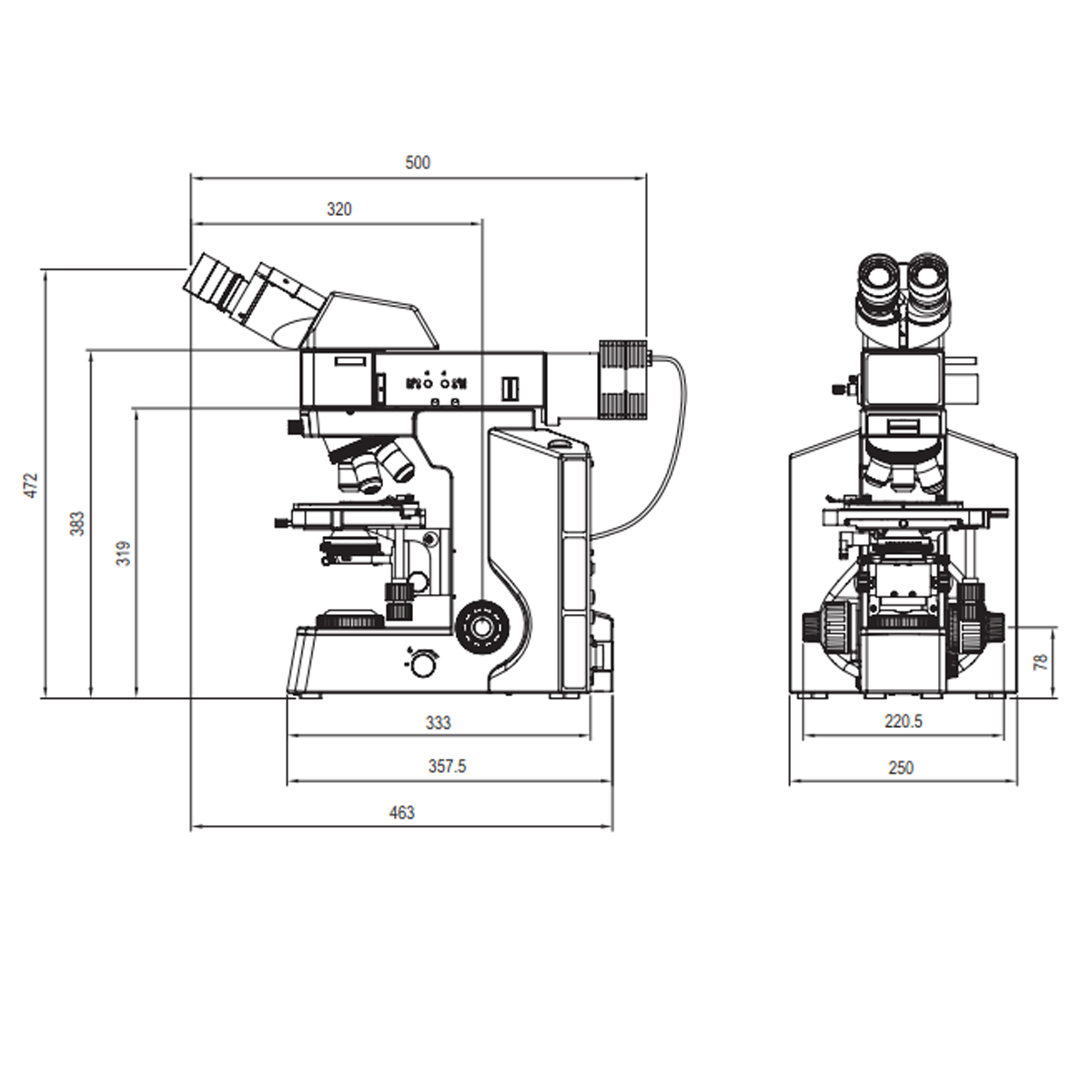

Microscope Stand
Stand Height310mm
Base TypeIllumination Base
Base ShapeT-shape
Base Dimensions250x330x80mm
Focus ModeManual
Coarse/Fine Focus TypeCoaxial Coarse/Fine Focus
Focus Distance28mm
Fine Focus Travel DistanceSame as Focus Distance
Coarse Focus Distance per Rotation37.5mm
Fine Focus Distance per Rotation0.2mm
Fine Focus Minimum Scale2μm
Focus LimitedLimited
Focusing Knob Tightness AdjustableTightness Adjustable
Microscope Stage
XY Stage Travel Distance75x40mm
XY-Axis Drive ModeManual
Stage Platform Dimensions175x145mm
Stage Backlight Window Size30x81mm
Stage ScaleX: 0-90mm Y: 0-50mm
Opening Size of Stage Specimen HolderOpening 55-95mm
Microscope Illuminator
Illumination TypeLED Dual Illuminated Light
Coaxial Reflection Illuminator Light Source TypeLED
Transmission LightKohler Illumination
Transmission Light Source TypeLED
Aperture Diaphragm Mounting PositionVertical Illuminator
Field Diaphragm Mounting PositionVertical Illuminator
Number of Filter Slots1
Vertical Illuminator
Illuminator Mount Type for BodyFastening Screw
Illuminator Mount Size for Body Dia. 46mm
Illuminator Mount Type for Eye TubeFastening Screw
Illuminator Mount Size for Eye Tube Dia. 46mm
Coaxial Reflection Light TypeBright Field
Coaxial Reflection Illuminator Light Source TypeLED
Coaxial Reflection Illuminator Input VoltageDC 3.3V
Coaxial Reflection Illuminator Output Power5W
Lamp House Port Size Dia. 50mm
Aperture DiaphragmAperture Diaphragm Adjustable
Aperture Diaphragm Mounting PositionVertical Illuminator
Field DiaphragmField Diaphragm Adjustable
Field Diaphragm Mounting PositionVertical Illuminator
Output Power5W
Input VoltageDC 3.3V
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight2.85kg (6.28lbs)
Condenser
Condenser TypeSwing Out Condenser
Dry/Oil TypeDry
Applicable Range of Objective4-100X
Condenser AdjustableAdjustable
Condenser Top LensSwing-out Top Lens
Condenser Max. Numerical ApertureN.A. 1.2
Condenser Mounting Flange SizeFastening Screw
Condenser Base Travel Distance on Z-Axis30mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.13kg (0.29lbs)
Applied FieldBM0511 Series Microscope
0.5X Coupler
Coupler Mount Type for TrinocularFastening Screw
Coupler Mount Size for Trinocular Dia. 38mm
Coupler for Microscope TypeCompound Compatible
Coupler Magnification0.5X
C/CS-Mount CouplerC-Mount
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.14kg (0.31lbs)
Applied FieldFor BM0513 Series Microscope
Power Supply
Output Power10W
Input VoltageAC 100-240V 50/60Hz
Power Cord Connector TypeUSA 3 Pins
Power Cable Length1.8m
Other Parameters
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight15.75kg (34.72lbs)
Dimensions250x470x495mm (9.843x18.504x19.488 in. )
Series
MT0511MT05110313
Contains
Parts Including
PictureP/NProduct Name
MT05113851100X Infinity Long Working Distance Plan Achromatic Metallurgical Objective
MT05110333Trinocular Transmitted/Reflected Metallurgical Microscope
Desiccant Bag1 Bag
Allen KeyM3 1pc
Dust Cover1pc
Product Instructions/Operation Manual1pc
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)63x44x56.5cm (24.803x17.323x22.244″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsStyrofoam
Gross Weight21.30kg(46.96lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)63x44x56.5cm (24.803x17.323x22.244″)
Total Gross Weight of Transportation(kilogram)21.30
Total Gross Weight of Transportation(pound)46.96
Quantity of One Transportation Carton1pc
Microscope Optical Data Sheet
P/N Objective Objective Working Distance Eyepiece
MT05162232   (10X  Dia. 22mm) MT05162211   (10X  Dia. 22mm)
Magnification Field of View(mm) Magnification Field of View(mm)
MT05113231 5X 10.8mm 50X 4.4mm 50X 4.4mm
MT05113331 10X 12.2mm 100X 2.2mm 100X 2.2mm
MT05113431 20X 4mm 200X 1.1mm 200X 1.1mm
MT05113651 50X 7.9mm 500X 0.44mm 500X 0.44mm
MT05113851 100X 2.1mm 1000X 0.22mm 1000X 0.22mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /(Objective Optical Magnification*Body Magnification)
3. The Darker background items are Standard items, the white background items are optional items.
Video Microscope Optical Data Sheet
P/N Objective Coupler
BM05134141  (0.5X)
Magnification
MT05113231 5X 2.5X
MT05113331 10X 5X
MT05113431 20X 10X
MT05113651 50X 25X
MT05113851 100X 50X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification
Camera Image Sensor Specifications
No. Camera Image Sensor Size Camera image Sensor Diagonal
(mm) (inch)
1 1/4 in. 4mm 0.157"
2 1/3 in. 6mm 0.236"
3 1/2.8 in. 6.592mm 0.260"
4 1/2.86 in. 6.592mm 0.260"
5 1/2.7 in. 6.718mm 0.264"
6 1/2.5 in. 7.182mm 0.283"
7 1/2.3 in. 7.7mm 0.303"
8 1/2.33 in. 7.7mm 0.303"
9 1/2 in. 8mm 0.315"
10 1/1.9 in. 8.933mm 0.352"
11 1/1.8 in. 8.933mm 0.352"
12 1/1.7 in. 9.5mm 0.374"
13 2/3 in. 11mm 0.433"
14 1/1.2 in. 12.778mm 0.503"
15 1 in. 16mm 0.629"
16 1/1.1 in. 17.475mm 0.688"
Digital Magnification Data Sheet
Image Sensor Size Image Sensor Diagonal size Monitor
Screen Size (24in)
Digital Zoom Function
1/3 in. 6mm 101.6
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
Microscope Optical and Digital Magnifications Data Sheet
Objective Coupler Camera Monitor Video Microscope Optical Magnifications Digital Zoom Function Total Magnification Field of View (mm)
PN Magnification PN Magnification Image Sensor Size Image Sensor Diagonal size Screen Size
MT05113231 5X BM05134141 0.5X 1/3 in. 6mm 24in 2.5X 101.6 254X 2.4mm
MT05113331 10X BM05134141 0.5X 1/3 in. 6mm 24in 5X 101.6 508X 1.2mm
MT05113431 20X BM05134141 0.5X 1/3 in. 6mm 24in 10X 101.6 1016X 0.6mm
MT05113651 50X BM05134141 0.5X 1/3 in. 6mm 24in 25X 101.6 2540X 0.24mm
MT05113851 100X BM05134141 0.5X 1/3 in. 6mm 24in 50X 101.6 5080X 0.12mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

Recently viewed products
