Product Description
Condition: New
Technical Specifications

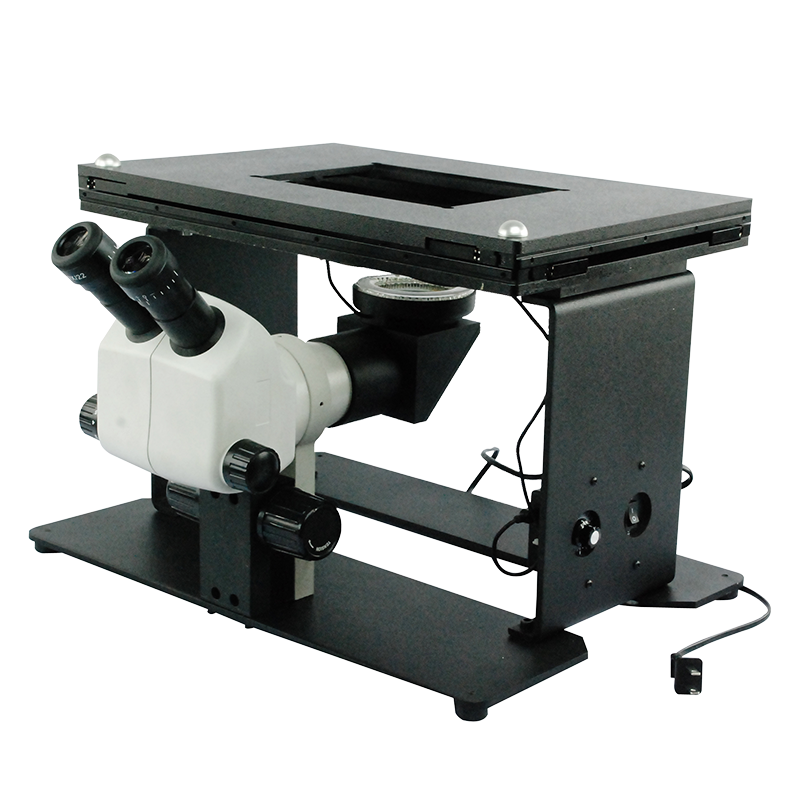

SZ02030821 Inverted Zoom Stereo Microscope
Optical System Specifications
Optical SystemFinite
System Optical Magnification8-50X
Expandable System Optical Magnification (Optional Parts Required)4-300X
Total Magnification8-50X
Standard Eyepiece10X Adjustable Eyepiece
Standard Objective1X Built-in Objective
System Field of View Dia. 4.4-27.5mm
Expandable System Field of View Dia. 2.2-55mm
System Working Distance115mm
Expandable System Working Distance45-220mm
Upright / InvertedInverted
Body Optical SystemFinite
Body Magnification8-50X
Zoom Range0.8-5X
Zoom Ratio1:6.3
Zoom Operating ModeWith Two Horizontal Knobs
Observation MethodBinocular
Body Mounting Size for Stand Dia. 76mm
Magnification Detent 1X per pre-set stop
Nosepiece Adapter Size for Ring Light Dia. 60mm
Eye Tube Adjustment ModeCompensating
Eye Tube Angle45°
Erect/Inverted ImageErect image
Eye Tube Rotatable360° Degree Rotatable
Interpupillary Adjustment52-75mm
Eye Tube Inner Diameter Dia. 30mm
Eye Tube Fixing ModeElastic Tube locking
Eyepiece TypeAdjustable Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 30mm
Eyepiece Field of View Dia. 22mm
Eyepoint TypeHigh Eyepoint Eyepiece
Eyepiece Size for Reticle Dia. 27mm
Eyepiece Diopter Correction±5°
Built-in Objective Magnification1X
Objective Working Distance115mm
Objective Screw ThreadM55x0.75mm
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight1.72kg (3.79lbs)
Stereo Auxiliary Lens
0.5X Auxiliary Objective
Objective Optical SystemFinite
Objective Optical Magnification0.5X
Objective TypeAchromatic Objective
Objective Working Distance220mm
Objective Screw ThreadM55x0.75mm
Objective Outer Diameter Dia. 60mm
Barlow LensYes
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.10kg (0.22lbs)
Applied FieldFor SZ1701, Nkon SMZ745, SMZ645 Series Stereo Microscopes
Inverted Stand
Stand TypeInverted Stand
Holder Adapter Type Dia. 76mm Scope Holder
Base TypeTable Base
Base ShapeRectangle
Focus ModeManual
Focus Distance50mm
Microscope Stage
XY Stage Travel Distance200x200mm
Stage Platform Dimensions380x230mm
Stage Backlight Window Size19x14.5mm
LED Ring Light (6W ID61mm 144Bulbs)
Light Source TypeLED Light
Ring I.D. Size Dia. 61mm
LED Quantity144
Power Supply AdjustableLight Adjustable
Light Source Illuminance20000Lux or more
Power Box Panel Meter DisplayPointer Panel Meter/Scale
Power Box Cooling SystemHeat Sink
Power Box Dimensions110x60x32mm
Bulb Color Temperature6400K
Output Power6W
Input VoltageAC 90-265V 50/60Hz
Output VoltageDC 12V
Power Cord Connector TypeUSA 2 Pins
Power Cable Length1.3m
MaterialPlastic
ColorBlack
Net Weight0.29kg (0.64lbs)
Screw ModelM3x22mm
Other Parameters
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight5.45kg (12.02lbs)
Dimensions240x290x395mm (9.449x11.417x15.551 in. )
Series
SZ1701SZ02030821
Warranty

5/1 Years

Certification
Contains
Parts Including
PictureP/NProduct Name
ML23241223LED Ring Light (6W ID61mm 144Bulbs)
SZ17011121Binocular Zoom Body
SZ170142110.5X Auxiliary Objective
Desiccant Bag2 Bags
Product Instructions/Operation Manual1pc
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)30x35x45cm (11.811x13.780x17.717″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight6.25kg (13.78lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)30x35x45cm (11.811x13.780x17.717″)
Total Gross Weight of Transportation(kilogram)6.25
Total Gross Weight of Transportation(pound)13.78

Microscope Optical Data Sheet
P/N Objective Objective Working Distance Eyepiece
SZ17011121   (10X  Dia. 22mm) SZ04023421   (15X  Dia. 16mm) SZ17013421   (15X  Dia. 16mm) SZ04023621   (20X  Dia. 12.5mm) SZ17013621   (20X  Dia. 12.5mm)
Magnification Field of View(mm) Magnification Field of View(mm) Magnification Field of View(mm) Magnification Field of View(mm) Magnification Field of View(mm)
SZ17014211 0.5X 220mm 4-25X 8.8-55mm 6-37.5X 6.4-40mm 6-37.5X 6.4-40mm 8-50X 5-31.25mm 8-50X 5-31.25mm
SZ17014311 0.7X 150mm 5.6-35X 6.29-39.29mm 8.4-52.5X 4.57-28.57mm 8.4-52.5X 4.57-28.57mm 11.2-70X 3.57-22.32mm 11.2-70X 3.57-22.32mm
SZ17011121 1X 115mm 8-50X 4.4-27.5mm 12-75X 3.2-20mm 12-75X 3.2-20mm 16-100X 2.5-15.62mm 16-100X 2.5-15.62mm
SZ17014611 2X 45mm 16-100X 2.2-13.75mm 24-150X 1.6-10mm 24-150X 1.6-10mm 32-200X 1.25-7.81mm 32-200X 1.25-7.81mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /(Objective Optical Magnification*Body Magnification)
3. The Darker background items are Standard items, the white background items are optional items.
